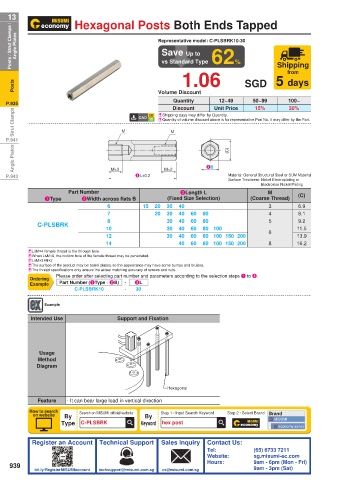

Page 944 - MISUMI SINGAPORE Economy Series

13 Hexagonal Posts Both Ends Tapped
Posts / Strut Clamps / Angle Plates Representative model: C-PLSBRK10-30 Shipping

Save Up to
vs Standard Type
62%
1.06
from
Posts Volume Discount SGD 5 days

Quantity 12~49 50~99 100~
P.935 Discount Unit Price 15% 30%
Strut Clamps E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

P.941 M M
Angle Plates 2B (C)

P.943 M×2 3L±0.2 M×2 Material: General Structural Steel or SUM Material
Surface Treatment: Nickel Electroplating or
Electroless Nickel Plating
Part Number 3Length L M
1Type 2Width across flats B (Fixed Size Selection) (Coarse Thread) (C)
6 15 20 30 40 3 6.9
7 20 30 40 60 80 4 8.1
8 30 40 60 80 5 9.2
C-PLSBRK
10 30 40 60 80 100 6 11.5
12 30 40 60 80 100 150 200 13.9
14 40 60 80 100 150 200 8 16.2
EL≤M×4 female thread is the through hole.
EWhen L≤M×6, the bottom hole of the female thread may be penetrated.
EL≥M×2+N×2
E The surface of the product may be barrel plated, so the appearance may have some bumps and bruises.
E The thread specifications only ensure the actual matching accuracy of screws and nuts.
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2B) - 3L
C-PLSBRK10 - 30
Example

Intended Use Support and Fixation

Usage
Method
Diagram

Hexagonal Posts
Feature · It can bear large load in vertical direction
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-PLSBRK Keyword hex post MISUMI
Economy series
