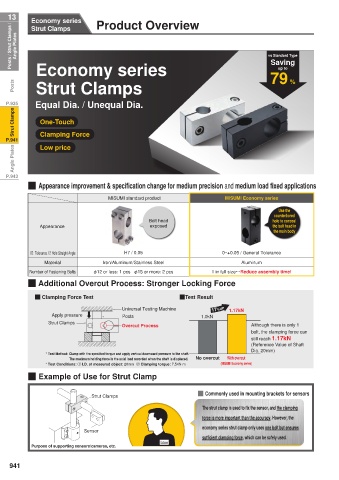

Page 946 - MISUMI SINGAPORE Economy Series

13 Economy series Product Overview
Posts / Strut Clamps / Angle Plates vs Standard Type
Strut Clamps

Saving
up to
Strut Clamps
Posts Economy series 79 %

P.935 Equal Dia. / Unequal Dia.
Strut Clamps One-Touch

P.941 Clamping Force
Low price
Angle Plates

P.943
Q Appearance improvement & specification change for medium precision and medium load fixed applications

MISUMI standard product MISUMI Economy series
Use the
counterbored
Bolt head hole to conceal
Appearance exposed the bolt head in
the main body

I.D. Tolerance / 2 Hole Straight Angle H7 / 0.05 0~+0.05 / General Tolerance
Material Iron/Aluminum/Stainless Steel Aluminum
Number of Fastening Bolts φ12 or less: 1 pcs φ15 or more: 2 pcs 1 in full size···Reduce assembly time!
Q Additional Overcut Process: Stronger Locking Force

Q Clamping Force Test QTest Result
Universal Testing Machine 17%UP 1.17kN
Apply pressure Posts 1.0kN
Strut Clamps
Overcut Process Although there is only 1
bolt, the clamping force can
still reach 1.17kN
(Reference Value of Shaft
Dia. 20mm)
* Test Method: Clamp with the specified torque and apply vertical downward pressure to the shaft.
The maximum holding force is the axial load recorded when the shaft is displaced. No overcut With overcut
* Test Conditions: 1 I.D. of measured object: 20mm 2 Clamping torque: 7.54N·m (MISUMI Economy series)
Q Example of Use for Strut Clamp

Q Commonly used in mounting brackets for sensors
Strut Clamps
The strut clamp is used to fix the sensor, and the clamping
force is more important than the accuracy. However, the
economy series strut clamp only uses one bolt but ensures
Sensor
sufficient clamping force, which can be safely used.
Customer
Purpose of supporting sensors/cameras, etc.
