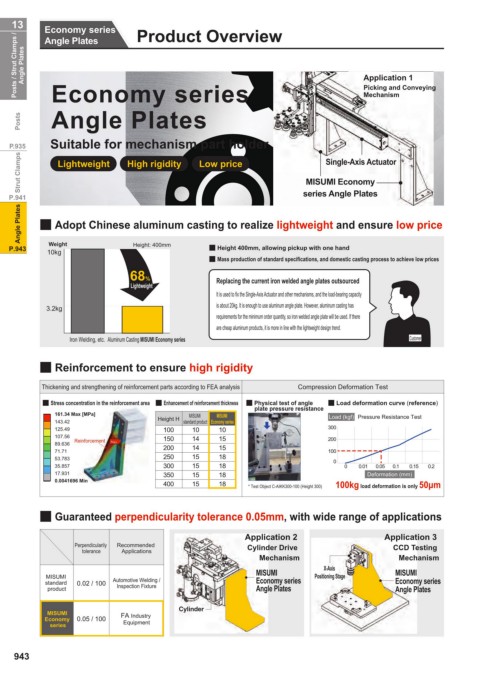

13 Economy series Product Overview
Posts / Strut Clamps / Angle Plates Economy series Application 1
Angle Plates

Picking and Conveying

Posts Angle Plates Mechanism

P.935 Suitable for mechanism part holder
Strut Clamps Lightweight High rigidity Low price MISUMI Economy
Single-Axis Actuator

P.941 series Angle Plates
Angle Plates Q Adopt Chinese aluminum casting to realize lightweight and ensure low price

Weight
P.943 10kg Height: 400mm Q Height 400mm, allowing pickup with one hand
Q Mass production of standard specifications, and domestic casting process to achieve low prices

68% Replacing the current iron welded angle plates outsourced
Lightweight
It is used to fix the Single-Axis Actuator and other mechanisms, and the load-bearing capacity
3.2kg is about 20kg. It is enough to use aluminum angle plate. However, aluminum casting has
requirements for the minimum order quantity, so iron welded angle plate will be used. If there
are cheap aluminum products, it is more in line with the lightweight design trend.
Iron Welding, etc. Aluminum Casting MISUMI Economy series Customer

Q Reinforcement to ensure high rigidity

Thickening and strengthening of reinforcement parts according to FEA analysis Compression Deformation Test

Q Stress concentration in the reinforcement area Q Enhancement of reinforcement thickness Q Physical test of angle Q Load deformation curve (reference)
plate pressure resistance
161.34 Max [MPa] MISUMI MISUMI Load (kgf) Pressure Resistance Test
143.42 Height H standard product Economy series
125.49 100 10 10 300
107.56 Reinforcement 150 14 15 200
89.636
71.71 200 14 15 100
53.783 250 15 18 0
35.857 300 15 18 0 0.01 0.05 0.1 0.15 0.2
17.931 350 15 18 Deformation (mm)
0.0041696 Min
400 15 18 * Test Object C-AIKK300-100 (Height 300) 100kg load deformation is only 50μm
Q Guaranteed perpendicularity tolerance 0.05mm, with wide range of applications

Application 2 Application 3
Perpendicularily Recommended Cylinder Drive CCD Testing
tolerance Applications
Mechanism Mechanism
MISUMI X-Axis MISUMI
MISUMI Positioning Stage
standard 0.02 / 100 Automotive Welding / Economy series Economy series
product Inspection Fixture Angle Plates Angle Plates
Cylinder
MISUMI FA Industry
Economy 0.05 / 100 Equipment
series

943
