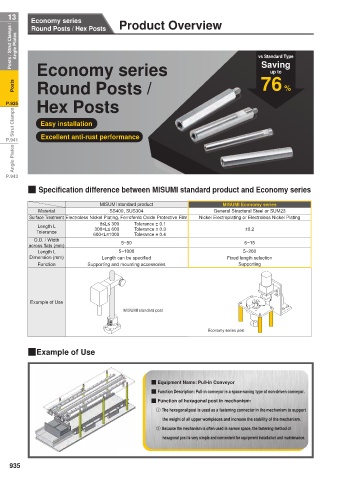

13 Economy series Product Overview Product Overview Round Posts / Hex Posts
Economy series
Posts / Strut Clamps / Angle Plates vs Standard Type Q Salt Spray Test Report (Corrosion resistance: Q Economy series product thread
Round Posts / Hex Posts

Saving
Economy series is equivalent to MISUMI standard product) with the relief groove, aesthetic
up to
MISUMI Economy series
Round Posts /
Posts Economy series 76 % MISUMI Economy series Feature 1: The male thread has a relief groove
Material: General Structural Steel
or SUM Material
to screw the thread to the bottom.
P.935 Hex Posts Surface Treatment: Nickel Feature 2: The end face is chamfered and
Electroplating or Electroless Nickel
Plating
Strut Clamps Easy installation Test Result: No Obvious Rust Before Test After Test Product Example:
deburred, which is aesthetic.
MISUMI standard product
P.941 Excellent anti-rust performance Material: SS400 2 1
Surface Treatment: Electroless
Angle Plates Nickel Plating Before Test After Test
Test Result: No Obvious Rust

P.943
Generic products on the market 1*
Q Specification difference between MISUMI standard product and Economy series Material: S45C Corrosion resistance: Economy series is equivalent to MISUMI standard product
Surface Treatment: Electroless Generic products on the market
MISUMI standard product MISUMI Economy series Nickel Plating
Material SS400, SUS304 General Structural Steel or SUM23 Feature 1: Incomplete thread is left at the bottom,
Surface Treatment Electroless Nickel Plating, Ferroferric Oxide Protective Film Nickel Electroplating or Electroless Nickel Plating Test Result: Large Area of Before Test After Test which cannot be screwed in completely.
8≤L≤ 300 Tolerance ± 0.1 Corrosion
Length L Feature 2: No chamfer, and risk of cutting
Tolerance 300<L≤ 600 Tolerance ± 0.3 ±0.2 Generic products on the market 2*
600<L≤1000 Tolerance ± 0.4 Product Example:
O.D. / Width 5~50 6~15 Material: SUM23
across flats (mm) Surface Treatment: 1
Length L 5~1000 5~200
Dimension (mm) Length can be specified Fixed length selection Electroplated Nickel Plating 2
Function Supporting and mounting accessories Supporting Test Result: Completely Before Test After Test
Rusted
· Test Method: Corrosion test according to standard ASTM B117 test method
· Test Conditions: 1 Salt water spray test (5%NaCL35°C)
2 Volume of salt solution 1.0~2.0ml/hr
3 Salt solution PH value 6.5~7.2
Example of Use
* Generic products on the market are similar products randomly purchased by our company from online or offline markets
MISUMI standard post
* The test data are obtained through testing by our company, which are for reference only
Q Product use and relief groove reference value
Economy series post

QExample of Use · Feature: The wrench can be used for the hexagonal post in more places than the round post, · Post Dimensions of male thread relief
and the wrench can be used even near the workpiece, and the wrench can be changed every groove (reference value)
60°. When using the round post, make sure that there is room for turning the wrench. M

Q Equipment Name: Pull-in Conveyor MC
Q Function Description: Pull-in conveyor is a space-saving type of non-driven conveyor.
g
Q Function of hexagonal post in mechanism:
1 The hexagonal post is used as a fastening connector in the mechanism to support M MC g
1
the weight of all upper workpieces and increase the stability of the mechanism. 60° 3 4 2.3 1.2
3
2 Because the mechanism is often used in narrow space, the fastening method of 180° 5 3.9 1.5
6 4.3 2
hexagonal post is very simple and convenient for equipment installation and maintenance. When using a wrench on When using a wrench on the 8 6.2 2.5
the hexagonal post round post
