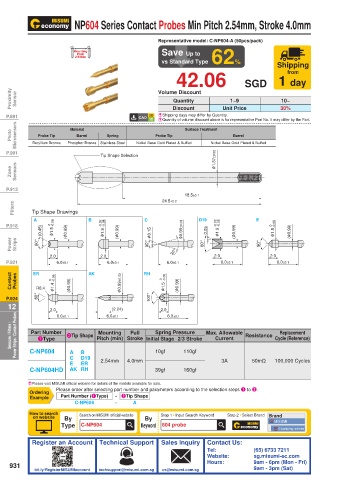

P. 936
NP604 Series Contact Probes Min Pitch 2.54mm, Stroke 4.0mm
Representative model: C-NP604-A (50pcs/pack)
Mounting Save Up to
Pitch
2.54mm
vs Standard Type 62% Shipping
42.06 SGD 1 day
from
Proximity Sensor Volume Discount 1~9 10~
Quantity
Unit Price
Discount
P.891 E Shipping days may differ by Quantity. 30%
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Microsensors Beryllium Bronze Phosphor Bronze Stainless Steel Nickel Base Gold Plated & Buffed Nickel Base Gold Plated & Buffed
Photo Material Surface Treatment
Barrel
Spring
Probe Tip
Barrel
Probe Tip
P.901 Tip Shape Selection φ 1.37±0.02
Zone Sensors
P.913
18.5±0.1
24.5±0.2
Filters Tip Shape Drawings
A B C D19 E
P.918 -0.06 -0.08 -0.08 -0.06
(0.45) φ 1.5 0 ( φ 0.99) φ 1.9 -0.02 ( φ 0.99) φ 0.15 φ 0.99±0.03 0.05 φ 1.9 -0.02 ( φ 0.99) φ 1.5 0 ( φ 0.99)
Power Strips 60° 50° 60° 90°
2.0 2.0 30° 2.0 2.0
P.921 6.0±0.1 6.0±0.1 6.0±0.1 6.0±0.1 6.0±0.1
Contact Probes ER φ 1.4 0 -0.06 ( φ 0.99) AK φ 0.99±0.03 RH φ 1.5 0 -0.06 ( φ 0.99)
R0.4
P.924 60° 100°
12 2.0 6.0±0.1 6.0±0.1 2.0 6.0±0.1
(2.24)
Sensors / Filters / Power Strips / Contact Probes Part Number 2Tip Shape Pitch (min) Stroke Initial Stage 2/3 Stroke Max. Allowable Resistance Cycle (Reference)
Mounting
Spring Pressure
Full
Replacement
1Type
Current
C-NP604
A
D19
C
ER
E B 2.54mm 4.0mm 10gf 110gf 3A 50mΩ 100,000 Cycles
C-NP604HD AK RH 39gf 160gf
E Please visit MISUMI official website for details of the models available for sale.
Please order after selecting part number and parameters according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type) - 2Tip Shape
C-NP604 - A
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type C-NP604 Keyword 604 probe
Economy series
