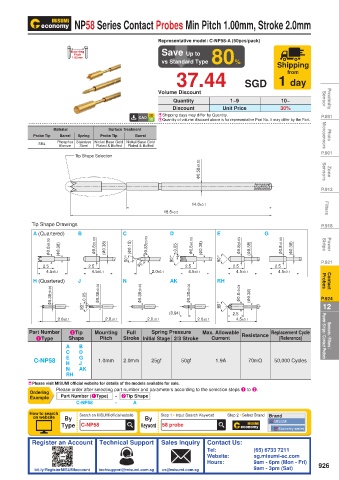

Page 931 - MISUMI SINGAPORE Economy Series

NP58 Series Contact Probes Min Pitch 1.00mm, Stroke 2.0mm

Representative model: C-NP58-A (50pcs/pack)
Mounting Save Up to
Pitch
1.00mm
vs Standard Type 80% Shipping
37.44 SGD 1 day
from

Volume Discount
Quantity 1~9 10~ Sensor Proximity
Discount Unit Price 30%
E Shipping days may differ by Quantity. P.891
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Surface Treatment
Probe Tip Barrel Spring Probe Tip Barrel Microsensors Photo
SK4 Phosphor Stainless Nickel Base Gold Nickel Base Gold
Bronze
Plated & Buffed
Plated & Buffed
Steel
P.901
Tip Shape Selection
φ 0.58±0.02 Sensors Zone
P.913

14.0±0.1
18.5±0.2 Filters
Tip Shape Drawings P.918
A (Quartered) B C D E G
φ 0.8±0.03 ( φ 0.38) φ 0.8±0.03 ( φ 0.38) ( φ 0.15) φ 0.38±0.03 0.05 φ 0.8±0.03 ( φ 0.38) φ 0.8±0.03 ( φ 0.38) φ 0.8±0.03 ( φ 0.38) Strips Power

50° 90° 90° P.921
2.5 2.5 30° 2.5 2.5 2.5
4.5±0.1 4.5±0.1 2.0±0.1 4.5±0.1 4.5±0.1 4.5±0.1
H (Quartered) J N AK RH Probes Contact
φ 0.38±0.03 0.05 φ 0.38±0.03 φ 0.38±0.03 φ 0.38±0.03 φ 0.8±0.03 ( φ 0.38) P.924

90° 90° 12
(0.94) 2.5
2.0±0.1 2.0±0.1 2.0±0.1 2.0±0.1 4.5±0.1
Part Number 2Tip Mounting Full Spring Pressure Max. Allowable Resistance Replacement Cycle
1Type Shape Pitch Stroke Initial Stage 2/3 Stroke Current (Reference) Power Strips / Contact Probes Sensors / Filters /
A B
C D
C-NP58 E G 1.0mm 2.0mm 25gf 50gf 1.9A 70mΩ 50,000 Cycles
J
H
N AK
RH
E Please visit MISUMI official website for details of the models available for sale.
Please order after selecting part number and parameters according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type) - 2Tip Shape
C-NP58 - A
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type C-NP58 Keyword 58 probe
Economy series
