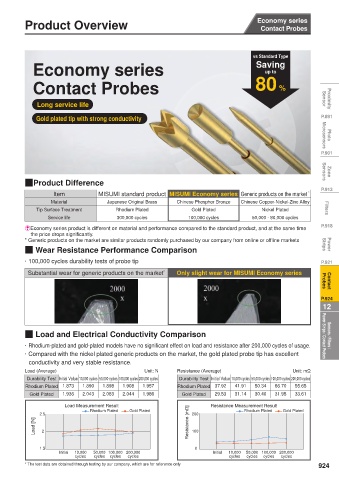

Page 929 - MISUMI SINGAPORE Economy Series

Product Overview Economy series
Contact Probes

vs Standard Type
Economy series Saving
up to
Contact Probes 80 %

Long service life Sensor Proximity

Gold plated tip with strong conductivity P.891

Microsensors
P.901

QProduct Difference Sensors Zone
P.913
Item MISUMI standard product MISUMI Economy series Generic products on the market *
Material Japanese Original Brass Chinese Phosphor Bronze Chinese Copper-Nickel-Zinc Alloy
Tip Surface Treatment Rhodium Plated Gold Plated Nickel Plated Filters
Service life 300,000 cycles 100,000 cycles 50,000 - 80,000 cycles
EEconomy series product is different on material and performance compared to the standard product, and at the same time P.918
the price drops significantly.
* Generic products on the market are similar products randomly purchased by our company from online or offline markets
Q Wear Resistance Performance Comparison Strips Power

· 100,000 cycles durability tests of probe tip P.921
Substantial wear for generic products on the market * Only slight wear for MISUMI Economy series Probes Contact

P.924
12

Q Load and Electrical Conductivity Comparison Power Strips / Contact Probes Sensors / Filters /

· Rhodium-plated and gold-plated models have no significant effect on load and resistance after 200,000 cycles of usage.
· Compared with the nickel plated generic products on the market, the gold plated probe tip has excellent
conductivity and very stable resistance.
Load (Average) Unit: N Resistance (Average) Unit: mΩ
Durability Test Initial Value 10,000 cycles 50,000 cycles 100,000 cycles 200,000 cycles Durability Test Initial Value 10,000 cycles 50,000 cycles 100,000 cycles 200,000 cycles
Rhodium Plated 1.873 1.890 1.898 1.908 1.957 Rhodium Plated 37.92 41.91 50.34 66.70 55.65
Gold Plated 1.936 2.043 2.083 2.044 1.986 Gold Plated 29.53 31.14 30.40 31.95 33.61
Load Measurement Result Resistance Measurement Result
Rhodium Plated Gold Plated Rhodium Plated Gold Plated
2.5 200
Load [N] 2 Resistance [mΩ] 100

1.5 0
Initial 10,000 50,000 100,000 200,000 Initial 10,000 50,000 100,000 200,000
cycles cycles cycles cycles cycles cycles cycles cycles
* The test data are obtained through testing by our company, which are for reference only 924
