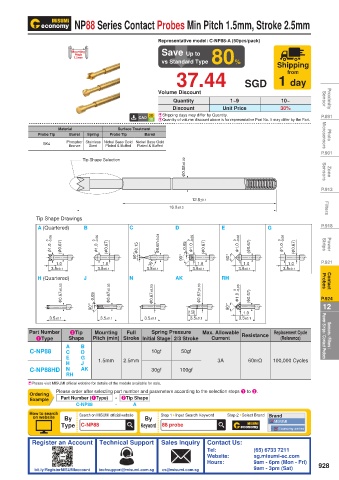

Page 933 - MISUMI SINGAPORE Economy Series

NP88 Series Contact Probes Min Pitch 1.5mm, Stroke 2.5mm

Representative model: C-NP88-A (50pcs/pack)
Mounting Save Up to
Pitch
1.5mm
vs Standard Type 80% Shipping
37.44 SGD 1 day
from

Volume Discount
Quantity 1~9 10~ Sensor Proximity
Discount Unit Price 30%
E Shipping days may differ by Quantity. P.891
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Surface Treatment
Probe Tip Barrel Spring Probe Tip Barrel Microsensors Photo
SK4 Phosphor Stainless Nickel Base Gold Nickel Base Gold
Plated & Buffed
Plated & Buffed
Steel
Bronze
P.901
Tip Shape Selection
φ 0.88±0.02 Sensors Zone
P.913

12.5±0.1
16.0±0.2 Filters
Tip Shape Drawings
A (Quartered) B C D E G P.918

-0.06 -0.06 -0.06 -0.06 -0.06
φ 1.0 0 ( φ 0.67) φ 1.0 0 ( φ 0.67) 50° φ 0.15 φ 0.67±0.03 0.05 φ 1.0 0 ( φ 0.67) φ 1.0 0 ( φ 0.67) φ 1.0 0 ( φ 0.67) Strips Power

1.0 1.0 30° 90° 1.0 90° 1.0 1.0 P.921
3.5±0.1±0.1
3.5±0.1±0.1
3.5±0.1 3.5±0.1 3.5 3.5 3.5 3.5
3.5±0.1±0.1
3.5±0.1±0.1
H (Quartered) J N AK RH Probes Contact
φ 0.67±0.03 0.05 φ 0.67±0.03 φ 0.67±0.03 φ 0.67±0.03 φ 1.0 0 -0.06 ( φ 0.67) P.924
90° 90° 12
(1.52) 1.0
3.5±0.1 3.5±0.1 3.5±0.1 3.5±0.1 3.5±0.1
Part Number 2Tip Mounting Full Spring Pressure Max. Allowable Resistance Replacement Cycle
1Type Shape Pitch (min) Stroke Initial Stage 2/3 Stroke Current (Reference) Power Strips / Contact Probes Sensors / Filters /
A B
C-NP88 C D 10gf 50gf
E G
H J 1.5mm 2.5mm 3A 60mΩ 100,000 Cycles
C-NP88HD N AK 30gf 100gf
RH
E Please visit MISUMI official website for details of the models available for sale.
Please order after selecting part number and parameters according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type) - 2Tip Shape
C-NP88 - A
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type C-NP88 Keyword 88 probe
Economy series
