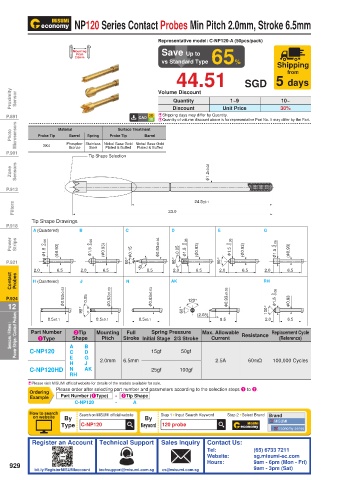

Page 934 - MISUMI SINGAPORE Economy Series

NP120 Series Contact Probes Min Pitch 2.0mm, Stroke 6.5mm

Representative model: C-NP120-A (50pcs/pack)
Mounting Save Up to
Pitch
2.0mm
vs Standard Type 65% Shipping
44.51 SGD 5 days
from
Proximity Sensor Volume Discount 1~9 10~
Quantity
Discount
Unit Price
P.891 E Shipping days may differ by Quantity. 30%
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Microsensors Probe Tip Phosphor Stainless Nickel Base Gold Nickel Base Gold
Photo Material Surface Treatment
Probe Tip
Barrel
Spring
Barrel
P.901 SK4 Bronze Steel Plated & Buffed Plated & Buffed
Tip Shape Selection
Zone Sensors φ 1.2±0.02

P.913

Filters 33.0 24.5±0.1

Tip Shape Drawings
P.918
A (Quartered) B C D E G
Power Strips φ 1.5 0 -0.06 ( φ 0.93) φ 1.5 0 -0.06 ( φ 0.93) φ 0.93±0.03 0.05 φ 1.5 0 -0.06 ( φ 0.93) φ 1.5 0 -0.06 ( φ 0.93) φ 1.5 0 -0.06 ( φ 0.93)

P.921 50° φ 0.15 90° 90°
2.0 6.5 2.0 6.5 30° 8.5 2.0 6.5 2.0 6.5 2.0 6.5
Contact Probes H (Quartered) J N AK RH

P.924 φ 0.93±0.03 0.05 φ 0.93±0.03 φ 0.93±0.03 120° φ 0.93±0.03 φ 1.5 0 -0.06 φ 0.93
12 8.5±0.1 90° 8.5±0.1 8.5±0.1 60° (2.08) 8.5 2.0 6.5
100°

Sensors / Filters / Power Strips / Contact Probes Part Number A Shape B Mounting Stroke Initial Stage 2/3 Stroke Max. Allowable Resistance Replacement Cycle
Spring Pressure
2Tip
Full
Pitch
Current
1Type
(Reference)
C-NP120
C
E
G
J
H D 2.0mm 6.5mm 15gf 50gf 2.5A 60mΩ 100,000 Cycles
C-NP120HD N AK 25gf 100gf
RH
E Please visit MISUMI official website for details of the models available for sale.
Please order after selecting part number and parameters according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type) - 2Tip Shape
C-NP120 - A
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-NP120 Keyword 120 probe MISUMI
Economy series
