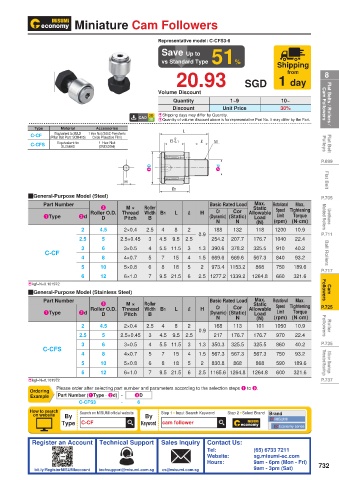

Page 737 - MISUMI SINGAPORE Economy Series

Miniature Cam Followers

Representative model: C-CFS3-6
Save Up to
vs Standard Type 51% Shipping
20.93 SGD 1 day 8
from

Volume Discount
Quantity 1~9 10~
Discount Unit Price 30% Cam Followers Flat Belts / Rollers /
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Type Material Accessories L
Equivalent to SUJ2
C-CF (Pillar Bolt Part: SCM415) 1 Hex Nut (S45C·Ferroferric 0
Oxide Protective Film)
C-CFS Equivalent to 1 Hex Nut B -0.1 L M Pulleys Flat Belt
(SUS304)
SUS440
P.699
3D 2d
H Flat Belt
B1
QGeneral-Purpose Model (Steel) P.705
Part Number Basic Rated Load Max. Rotational Max.
3 M × Roller Static Speed Tightening
Roller O.D. Thread Width B1 L L H Cr Cor Allowable
1Type 2d D Pitch B (Dynamic) (Static) Load Limit Torque Molded Rollers Urethane
N N (N) (rpm) (N·cm)
2 4.5 2×0.4 2.5 4 8 2 188 132 118 1200 10.9
0.9 P.711
2.5 5 2.5×0.45 3 4.5 9.5 2.5 254.2 207.7 176.7 1040 22.4
3 6 3×0.5 4 5.5 11.5 3 1.3 390.6 378.2 325.5 910 40.2
C-CF Ball Rollers
4 8 4×0.7 5 7 15 4 1.5 669.6 669.6 567.3 840 93.2
5 10 5×0.8 6 8 18 5 2 973.4 1153.2 868 750 189.6
P.717
6 12 6×1.0 7 9.5 21.5 6 2.5 1277.2 1339.2 1264.8 660 321.6
Ekgf=N×0.101972
QGeneral-Purpose Model (Stainless Steel) Followers Cam
Part Number Basic Rated Load Max. Rotational Max.
3 M × Roller Static Speed Tightening
Roller O.D. Thread Width B1 L L H Cr Cor Allowable P.725
1Type 2d D Pitch B (Dynamic) (Static) Load Limit Torque
N N (N) (rpm) (N·cm)
2 4.5 2×0.4 2.5 4 8 2 168 113 101 1050 10.9 Followers Roller
0.9
2.5 5 2.5×0.45 3 4.5 9.5 2.5 217 176.7 176.7 970 22.4
3 6 3×0.5 4 5.5 11.5 3 1.3 350.3 325.5 325.5 860 40.2 P.735
C-CFS
4 8 4×0.7 5 7 15 4 1.5 567.3 567.3 567.3 750 93.2
5 10 5×0.8 6 8 18 5 2 830.8 868 868 590 189.6 Threaded Bearings Silicon Bearings
6 12 6×1.0 7 9.5 21.5 6 2.5 1165.6 1264.8 1264.8 600 321.6
Ekgf=N×0.101972 P.737
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2d) - 3D
C-CFS3 - 6
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-CF Keyword cam follower MISUMI
Economy series
