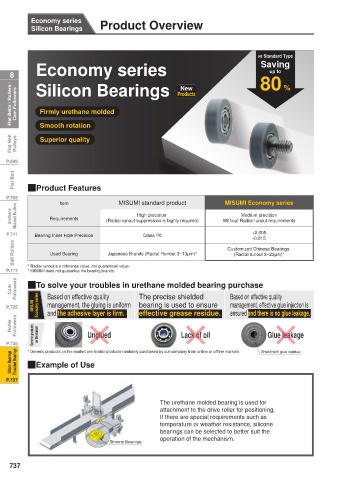

Page 742 - MISUMI SINGAPORE Economy Series

Economy series Product Overview
Silicon Bearings

vs Standard Type
Economy series Saving
up to
8 Silicon Bearings New 80 %
Flat Belts / Rollers / Cam Followers Firmly urethane molded Products

Flat Belt Pulleys Smooth rotation
Superior quality

P.699
Flat Belt QProduct Features

P.705
Item MISUMI standard product MISUMI Economy series
Urethane Molded Rollers Requirements (Radial runout suppression is highly required) Without Radial runout requirements
High precision
Medium precision

P.711 Bearing Inner Hole Precision Class P0 +0.005
-0.015
Ball Rollers Used Bearing Japanese Brands (Radial Runout 3~13μm)* Customized Chinese Bearings
(Radial runout 8~23μm)*

P.717 * Radial runout is a reference value, not guaranteed value.
* MISUMI does not guarantee the bearing brands.
Cam Followers QTo solve your troubles in urethane molded bearing purchase
The precise shielded
Based on effective quality
Based on effective quality
P.725 MISUMI Economy series management, the gluing is uniform bearing is used to ensure management, effective glue injection is
ensured and there is no glue leakage.
effective grease residue.
and the adhesive layer is firm.
Roller Followers Unglued Lack of oil Glue leakage
Generic products
on the market
P.735 * Generic products on the market are similar products randomly purchased by our company from online or offline markets Shield with glue residue
Silicon Bearings Threaded Bearings QExample of Use

P.737

The urethane molded bearing is used for
attachment to the drive roller for positioning.
If there are special requirements such as
temperature or weather resistance, silicone
bearings can be selected to better suit the
operation of the mechanism.
Silicone Bearings
