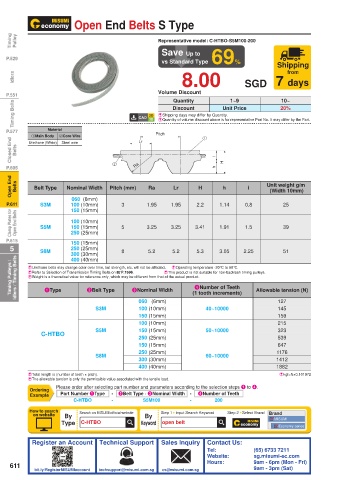

Page 616 - MISUMI SINGAPORE Economy Series

Open End Belts S Type

Timing Pulley Representative model: C-HTBO-S5M100-200

Save Up to
P.529
vs Standard Type 69% Shipping
from
Idlers 8.00 SGD 7 days

Volume Discount
P.551 Quantity 1~9 10~
Timing Belts E Shipping days may differ by Quantity. 20%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Main Body 2Core Wire Pitch 1
Closed End Belts Urethane (White) Steel wire Lr i

P.605 2 Ra h H
Open End Belts Belt Type Nominal Width Pitch (mm) Ra Lr H h i Unit weight g/m

(Width 10mm)
060 (6mm)
P.611 S3M 100 (10mm) 3 1.95 1.95 2.2 1.14 0.8 25
150 (15mm)
Clamp Plates for Open End Belts S5M 100 (10mm) 5 3.25 3.25 3.41 1.91 1.5 39
150 (15mm)

P.615 250 (25mm)
150 (15mm)
5 S8M 250 (25mm) 8 5.2 5.2 5.3 3.05 2.25 51
300 (30mm)
400 (40mm)
Timing Pulleys / Idlers / Timing Belts EUrethane belts may change color over time, but strength, etc. will not be affected. EOperating temperature -20°C to 60°C.
ERefer to Selection of Transmission Timing Belts on DP.1596.
EThis product is not suitable for non-backlash timing pulleys.
EWeight is a theoretical value for reference only, which may be different from that of the actual product.
4Number of Teeth
3Nominal Width
2Belt Type
1Type
127
060 (6mm) (1 tooth increments) Allowable tension (N)
S3M 100 (10mm) 40~10000 145
150 (15mm) 159
100 (10mm) 215
C-HTBO S5M 150 (15mm) 50~10000 323
250 (25mm) 539
150 (15mm) 647
250 (25mm) 1176
S8M 60~10000
300 (30mm) 1412
400 (40mm) 1882
ETotal length is (number of teeth × pitch). Ekgf=N×0.101972
EThe allowable tension is only the permissible value associated with the tensile load.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number 1Type - 2Belt Type · 3Nominal Width - 4Number of Teeth
C-HTBO - S5M100 - 200
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-HTBO Keyword open belt MISUMI
Economy series
