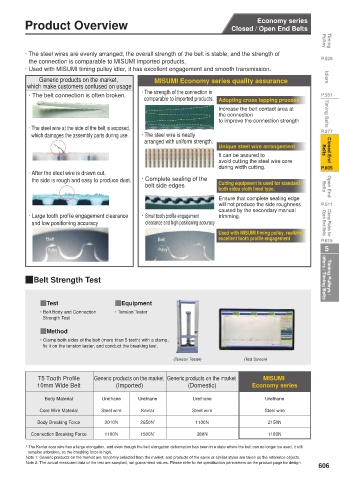

Economy series Product Overview Product Overview Economy series
Closed / Open End Belts Closed / Open End Belts Pulley Timing

vs Standard Type · The steel wires are evenly arranged, the overall strength of the belt is stable, and the strength of P.529
the connection is comparable to MISUMI imported products.
Economy series Closed / Saving · Used with MISUMI timing pulley idler, it has excellent engagement and smooth transmission.
up to
Generic products on the market,
MISUMI Economy series quality assurance
Open End Belts 75 % which make customers confused on usage · The strength of the connection is Idlers
· The belt connection is often broken.
comparable to imported products. Adopting cross tapping process P.551
Number of teeth can be specified Increase the belt contact area at
the connection Timing Belts
A variety of tooth profiles added to improve the connection strength
· The steel wire at the side of the belt is exposed, P.577
Excellent material performance which damages the assembly parts during use. · The steel wire is neatly
arranged with uniform strength.
Connection strength assured Unique steel wire arrangement Belts Closed End
It can be assured to
avoid cutting the steel wire core
during width cutting. P.605
· After the steel wire is drawn out,
the side is rough and easy to produce dust. · Complete sealing of the Cutting equipment is used for standard /
QProduct Specification Introduction belt side edges both sides cloth lined type. Belts Open End
Ensure that complete sealing edge
will not produce the side roughness P.611
Belt Type S Type HTD Type XL / L / H Type T Shape caused by the secondary manual
· Large tooth profile engagement clearance · Small tooth profile engagement trimming.
and low positioning accuracy clearance and high positioning accuracy Open End Belts Clamp Plates for
Tooth Profile Photos Used with MISUMI timing pulley, realizing
Belt Belt excellent tooth profile engagement P.615
Pulley Pulley 5
Material Body: Urethane (White); Core Wire: Steel Wire; Lined Cloth: Nylon Canvas (Green)
Open End Belts
Closed Belt (Standard) QBelt Strength Test Idlers / Timing Belts Timing Pulleys /
Closed Belt (Both Sides Cloth Lined)
The tooth profile photos are for reference only, and the color and size are subject to the actual product.
QExample of Use QTest QEquipment
· Belt Body and Connection · Tension Tester
Strength Test
Belt Conveying Lifting Mechanism Belt Long-Distance Reciprocating Mechanism
QMethod
· Clamp both sides of the belt (more than 5 teeth) with a clamp,
Open End Belts fix it on the tension tester, and conduct the breaking test.

(Tension Tester) (Test Screen)

T5 Tooth Profile Generic products on the market Generic products on the market MISUMI
Closed Belts
10mm Wide Belt (Imported) (Domestic) Economy series
Body Material Urethane Urethane Urethane Urethane
Core Wire Material Steel wire Kevlar Steel wire Steel wire

Body Breaking Force 2010N 2650N * 1100N 2150N
Connection Breaking Force 1100N 1500N * 380N 1180N
Introduction to use: Lifting structure for transporting lithium battery Introduction to use: Used for durability test of spraying tools * The Kevlar core wire has a large elongation, and even though the belt elongation deformation has been in a state where the belt can no longer be used, it still
(longitudinal) The open end belt is connected with the console for The reciprocating stroke is long, and the Closed Belt can be remains unbroken, so the breaking force is high.
lifting and reciprocating movement. used to slide the linear guide to reduce the motor load. Note 1: Generic products on the market are randomly selected from the market, and products of the same or similar styles are taken as the reference objects.
Note 2: The actual measured data of the test are sampled, not guaranteed values. Please refer to the specification parameters on the product page for design.
606
