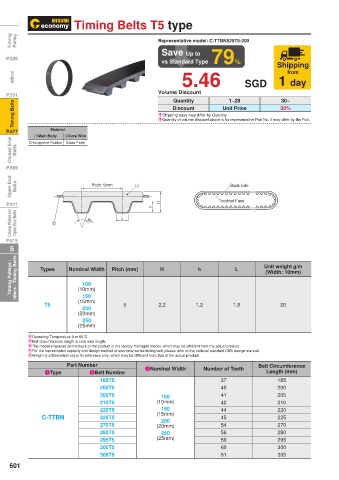

Page 606 - MISUMI SINGAPORE Economy Series

Timing Belts T5 type

Timing Pulley Representative model: C-TTBN525T5-200

Save Up to
P.529
vs Standard Type 79% Shipping
from
Idlers 5.46 SGD 1 day

Volume Discount
P.551 Quantity 1~29 30~
Timing Belts E Shipping days may differ by Quantity. 30%
Unit Price
Discount
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Main Body 2Core Wire
Closed End Belts Chloroprene Rubber Glass Fiber

P.605
Open End Belts Pitch: 5mm 1 Back side

Toothed Face
P.611 H
h
Clamp Plates for Open End Belts 2 40° L

P.615
5

Timing Pulleys / Idlers / Timing Belts Types Nominal Width Pitch (mm) H h L Unit weight g/m
(Width: 10mm)
100
(10mm)
150
T5 (15mm) 5 2.2 1.2 1.8 20
200
(20mm)
250
(25mm)
EOperating Temperature 0 to 80°C
EBelt circumference length is core wire length.
EThe model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
EFor the transmission capacity and design method of economy series timing belt, please refer to the national standard (GB) design manual.
EWeight is a theoretical value for reference only, which may be different from that of the actual product.
Part Number Belt Circumference
1Type 2Belt Number 3Nominal Width Number of Teeth Length (mm)
185T5 37 185
200T5 40 200
205T5 100 41 205
210T5 (10mm) 42 210
220T5 150 44 220
C-TTBN 225T5 (15mm) 45 225
200
270T5 (20mm) 54 270
280T5 250 56 280
295T5 (25mm) 59 295
300T5 60 300
305T5 61 305
601
