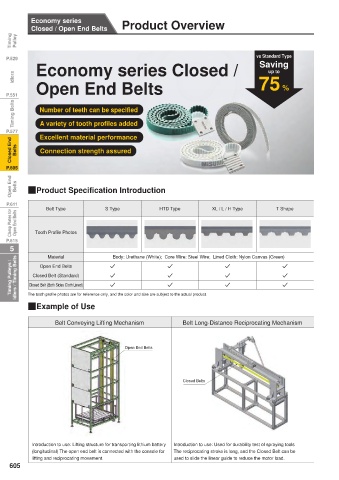

Page 610 - MISUMI SINGAPORE Economy Series

Economy series Product Overview Product Overview Economy series
Closed / Open End Belts Closed / Open End Belts
Timing Pulley

P.529 vs Standard Type · The steel wires are evenly arranged, the overall strength of the belt is stable, and the strength of
the connection is comparable to MISUMI imported products.
Economy series Closed / up to · Used with MISUMI timing pulley idler, it has excellent engagement and smooth transmission.
Saving
Idlers Open End Belts which make customers confused on usage MISUMI Economy series quality assurance
Generic products on the market,
P.551 75 % · The belt connection is often broken. · The strength of the connection is
comparable to imported products. Adopting cross tapping process
Timing Belts Number of teeth can be specified Increase the belt contact area at
the connection
to improve the connection strength
A variety of tooth profiles added
P.577 Excellent material performance · The steel wire at the side of the belt is exposed, · The steel wire is neatly
which damages the assembly parts during use.
Closed End Belts Connection strength assured arranged with uniform strength. Unique steel wire arrangement

It can be assured to
during width cutting.
P.605 avoid cutting the steel wire core
· After the steel wire is drawn out, · Complete sealing of the
Open End Belts QProduct Specification Introduction the side is rough and easy to produce dust. belt side edges Cutting equipment is used for standard /
both sides cloth lined type.

will not produce the side roughness
P.611 Belt Type S Type HTD Type XL / L / H Type T Shape Ensure that complete sealing edge
caused by the secondary manual
Clamp Plates for Open End Belts · Large tooth profile engagement clearance · Small tooth profile engagement trimming.
clearance and high positioning accuracy
and low positioning accuracy
excellent tooth profile engagement
P.615 Tooth Profile Photos Belt Belt Used with MISUMI timing pulley, realizing
5 Material Body: Urethane (White); Core Wire: Steel Wire; Lined Cloth: Nylon Canvas (Green) Pulley Pulley

Timing Pulleys / Idlers / Timing Belts Closed Belt (Both Sides Cloth Lined) QBelt Strength Test
Open End Belts
Closed Belt (Standard)

The tooth profile photos are for reference only, and the color and size are subject to the actual product.
QExample of Use QTest QEquipment
· Belt Body and Connection · Tension Tester
Strength Test
Belt Conveying Lifting Mechanism Belt Long-Distance Reciprocating Mechanism
QMethod
· Clamp both sides of the belt (more than 5 teeth) with a clamp,
Open End Belts fix it on the tension tester, and conduct the breaking test.

(Tension Tester) (Test Screen)

T5 Tooth Profile Generic products on the market Generic products on the market MISUMI
Closed Belts
10mm Wide Belt (Imported) (Domestic) Economy series
Body Material Urethane Urethane Urethane Urethane
Core Wire Material Steel wire Kevlar Steel wire Steel wire

Body Breaking Force 2010N 2650N * 1100N 2150N
Connection Breaking Force 1100N 1500N * 380N 1180N
Introduction to use: Lifting structure for transporting lithium battery Introduction to use: Used for durability test of spraying tools * The Kevlar core wire has a large elongation, and even though the belt elongation deformation has been in a state where the belt can no longer be used, it still
(longitudinal) The open end belt is connected with the console for The reciprocating stroke is long, and the Closed Belt can be remains unbroken, so the breaking force is high.
lifting and reciprocating movement. used to slide the linear guide to reduce the motor load. Note 1: Generic products on the market are randomly selected from the market, and products of the same or similar styles are taken as the reference objects.
605 Note 2: The actual measured data of the test are sampled, not guaranteed values. Please refer to the specification parameters on the product page for design.
