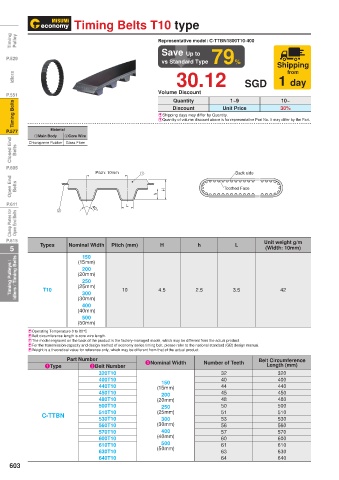

Page 608 - MISUMI SINGAPORE Economy Series

Timing Belts T10 type

Timing Pulley Representative model: C-TTBN1800T10-400

Save Up to
P.529
vs Standard Type 79% Shipping
from
Idlers 30.12 SGD 1 day

Volume Discount
P.551 Quantity 1~9 10~
Timing Belts E Shipping days may differ by Quantity. 30%
Unit Price
Discount
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Main Body 2Core Wire
Closed End Belts Chloroprene Rubber Glass Fiber

P.605
Pitch: 10mm 1 Back side
Open End Belts h H Toothed Face

P.611 2 40° L
Clamp Plates for Open End Belts

P.615 Unit weight g/m
5 Types Nominal Width Pitch (mm) H h L (Width: 10mm)
150
Timing Pulleys / Idlers / Timing Belts T10 (20mm) 10 4.5 2.5 3.5 42
(15mm)
200
250
(25mm)
300
(30mm)
400
(40mm)
500
(50mm)
EOperating Temperature 0 to 80°C
EBelt circumference length is core wire length.
EThe model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
EFor the transmission capacity and design method of economy series timing belt, please refer to the national standard (GB) design manual.
EWeight is a theoretical value for reference only, which may be different from that of the actual product.
Part Number Belt Circumference
1Type 2Belt Number 3Nominal Width Number of Teeth Length (mm)
320T10 32 320
400T10 150 40 400
440T10 (15mm) 44 440
450T10 200 45 450
480T10 (20mm) 48 480
500T10 250 50 500
C-TTBN 510T10 (25mm) 51 510
530T10
300
530
53
560T10 (30mm) 56 560
570T10 400 57 570
600T10 (40mm) 60 600
500
610T10 (50mm) 61 610
630T10 63 630
640T10 64 640
603
