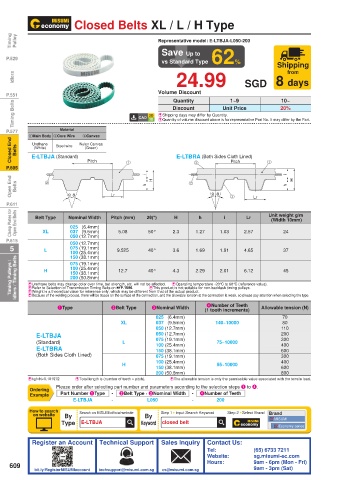

Page 614 - MISUMI SINGAPORE Economy Series

Closed Belts XL / L / H Type

Timing Pulley Representative model: E-LTBJA-L050-200

Save Up to
P.529
vs Standard Type 62% Shipping
from
Idlers 24.99 SGD 8 days

Volume Discount
P.551 Quantity 1~9 10~
Timing Belts E Shipping days may differ by Quantity. 20%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Main Body 2Core Wire 3Canvas
Closed End Belts E-LTBJA (Standard) Nylon Canvas E-LTBRA (Both Sides Cloth Lined)
Urethane
Steel wire
(Green)
(White)
P.605 Pitch 1 i 3 Pitch 1 i
Open End Belts 2 Lr h H 2 θ θ h H

P.611 θ θ 3 Lr
Clamp Plates for Open End Belts Belt Type Nominal Width Pitch (mm) 2θ(°) H h i Lr Unit weight g/m
(Width 10mm)
025 (6.4mm)
XL
050 (12.7mm)
P.615 037 (9.5mm) 5.08 50° 2.3 1.27 1.03 2.57 24
050 (12.7mm)
5 L 075 (19.1mm) 9.525 40° 3.6 1.69 1.91 4.65 37
100 (25.4mm)
150 (38.1mm)
Timing Pulleys / Idlers / Timing Belts EUrethane belts may change color over time, but strength, etc. will not be affected. EOperating temperature -20°C to 60°C (reference value). 45
075 (19.1mm)
100 (25.4mm)
H
6.12
12.7
40°
4.3
2.29
2.01
150 (38.1mm)
200 (50.8mm)
ERefer to Selection of Transmission Timing Belts on DP.1596.
EThis product is not suitable for non-backlash timing pulleys.
EWeight is a theoretical value for reference only, which may be different from that of the actual product.

EBecause of the welding process, there will be traces on the surface of the connection, and the allowable tension at the connection is weak, so please pay attention when selecting the type.
4Number of Teeth
1Type 2Belt Type 3Nominal Width (1 tooth increments) Allowable tension (N)
025 (6.4mm) 70
XL 037 (9.5mm) 140~10000 80
050 (12.7mm) 110
E-LTBJA 050 (12.7mm) 200
(Standard) L 075 (19.1mm) 75~10000 300
E-LTBRA 100 (25.4mm) 400
600
150 (38.1mm)
(Both Sides Cloth Lined) 075 (19.1mm) 300
H 100 (25.4mm) 55~10000 400
150 (38.1mm) 600
200 (50.8mm) 800
Ekgf=N×0.101972 ETotal length is (number of teeth × pitch). EThe allowable tension is only the permissible value associated with the tensile load.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number 1Type - 2Belt Type · 3Nominal Width - 4Number of Teeth
E-LTBJA - L050 - 200
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type E-LTBJA Keyword closed belt MISUMI
Economy series
