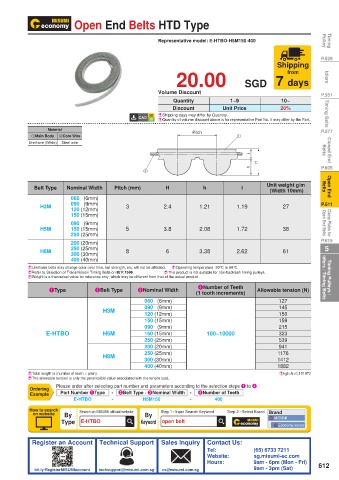

Page 617 - MISUMI SINGAPORE Economy Series

Open End Belts HTD Type

Representative model: E-HTBO-H5M150-400 Pulley Timing

P.529
Shipping
20.00 SGD 7 days Idlers
from

Volume Discount P.551
Quantity 1~9 10~
Discount Unit Price 20%
E Shipping days may differ by Quantity. Timing Belts
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Pitch P.577
1Main Body 2Core Wire 1
Urethane (White) Steel wire

i Belts Closed End
H
h P.605
2

Belt Type Nominal Width Pitch (mm) H h i Unit weight g/m Belts Open End
(Width 10mm)
060 (6mm)
H3M 090 (9mm) 3 2.4 1.21 1.19 27 P.611
120 (12mm)
150 (15mm)
090 (9mm) Open End Belts Clamp Plates for
H5M 150 (15mm) 5 3.8 2.08 1.72 38
250 (25mm)
200 (20mm) P.615
H8M 250 (25mm) 8 6 3.38 2.62 61 5
300 (30mm)
400 (40mm)
EUrethane belts may change color over time, but strength, etc. will not be affected. EOperating temperature -20°C to 60°C.
ERefer to Selection of Transmission Timing Belts on DP.1596. EThis product is not suitable for non-backlash timing pulleys.
EWeight is a theoretical value for reference only, which may be different from that of the actual product. Idlers / Timing Belts Timing Pulleys /
4Number of Teeth
1Type 2Belt Type 3Nominal Width (1 tooth increments) Allowable tension (N)
060 (6mm) 127
H3M 090 (9mm) 145
120 (12mm) 150
150 (15mm) 159
090 (9mm) 215
E-HTBO H5M 150 (15mm) 100~10000 323
250 (25mm) 539
200 (20mm) 941
250 (25mm) 1176
H8M 300 (30mm) 1412
400 (40mm) 1882
ETotal length is (number of teeth × pitch). Ekgf=N×0.101972
EThe allowable tension is only the permissible value associated with the tensile load.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number 1Type - 2Belt Type · 3Nominal Width - 4Number of Teeth
E-HTBO - H5M150 - 400
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type E-HTBO Keyword open belt MISUMI
Economy series
