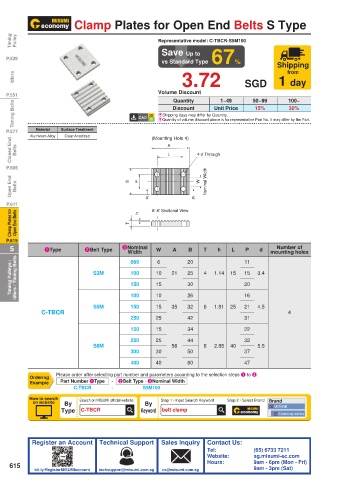

Clamp Plates for Open End Belts S Type

Timing Pulley Representative model: C-TBCR-S5M100

Save Up to
P.529
vs Standard Type 67% Shipping
from
Idlers 3.72 SGD 1 day

Volume Discount
P.551 Quantity 1~49 50~99 100~
Timing Belts E Shipping days may differ by Quantity. 15% 30%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
P.577 Material Surface Treatment
Aluminum Alloy Clear Anodized (Mounting Hole 4)
Closed End Belts A L 4-d Through

P.605
Open End Belts B P W Nominal Width

P.611 A’ A’-A’ Sectional View A’
Clamp Plates for Open End Belts T h

P.615
5 1Type 2Belt Type 3Nominal W A 20 T h L 11 d mounting holes
Number of
B
P
Width
Timing Pulleys / Idlers / Timing Belts S3M 100 10 21 25 4 1.14 15 15 3.4
6
060
15
150
30
20
S5M 100 10 35 26 6 1.81 25 16 4.5
32
15
150
21
C-TBCR 4
250 25 42 31
150 15 34 22
250 25 44 32
S8M 56 8 2.85 40 5.5
300 30 50 37
400 40 60 47
Please order after selecting part number and parameters according to the selection steps 1 to 3.
