Chain Conveyors Reference price

Application Industries: Automotive part Electronic & Electrical

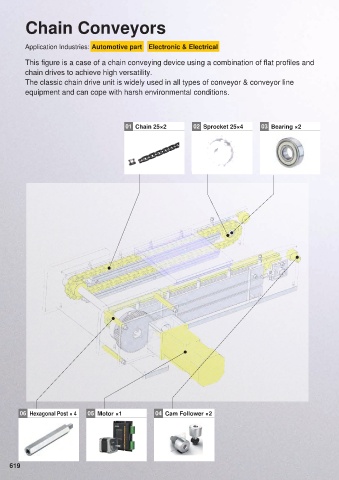

This figure is a case of a chain conveying device using a combination of flat profiles and
chain drives to achieve high versatility.
The classic chain drive unit is widely used in all types of conveyor & conveyor line 151.16 SGD/set
equipment and can cope with harsh environmental conditions.

01 Chain 25×2 02 Sprocket 25×4 03 Bearing ×2 01 Chain 25×2 P.624 02 Sprocket 25×4 P.623

Fixed number of links Number of Teeth 17
Number of Links 240 Shaft Dia. 9mm
C-CHE25-240 C-SPA25B17-S-9

5.66 7.69

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 5.66 5.66 2 7.69 15.38
30 3.97 119.10 30 5.39 161.70

03 Bearing ×2 P.650 04 Cam Follower ×2 P.729

I.D. 8mm Outer Ring Shape Arc Type
O.D. 16mm Hexagon Socket Mounting Type
Width 5mm Roller O.D. D 32mm
C-E688ZZ C-CUA12-32

1.11 10.49

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 1.11 1.11 1 10.49 10.49
50 0.95 47.50 10 7.35 73.50

05 Motor ×1 P.494 06 Hexagonal Post × 4 P.940

Type Motor + Driver 20 Series Opposite Distance 10mm
Body Length 33mm Length 50mm
Number of Leads 4 C-PLSBWRK10-50
Holding Torque 0.018N·m
C-20STM01+DR42A
80.60 1.32
06 Hexagonal Post × 4 05 Motor ×1 04 Cam Follower ×2
SGD/set SGD/pcs
Total Price
Quantity Unit Unit price Total price Quantity Unit price Total price
1 80.60 80.60 1 1.32 1.32
10 56.42 564.20 50 1.13 56.50
