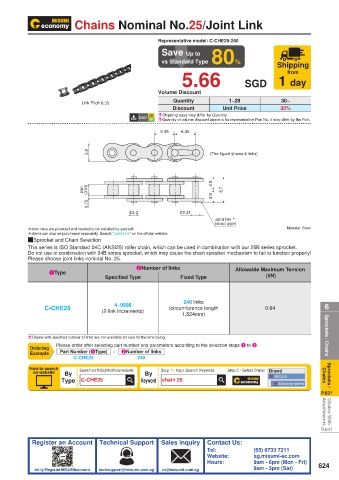

Page 629 - MISUMI SINGAPORE Economy Series

Chains Nominal No.25/Joint Link

Representative model: C-CHE25-240
Save Up to
vs Standard Type 80% Shipping
5.66 SGD 1 day
from

Volume Discount
Quantity 1~29 30~
Link Pitch 6.35
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
6.35 6.35

5.9 (The figure shows 4 links)

4.8
min (310) 8.7
3.9
0.75
φ 3.3 φ 2.31
Joint link ＊
(snap type)
＊Joint links are provided and needed to be installed by yourself. Material: Steel
＊Joints can also be purchased separately. Search “Joint Link” on the official website.
QSprocket and Chain Selection
This series is ISO Standard 04C (ANSI25) roller chain, which can be used in combination with our 25B series sprocket.
Do not use in combination with 04B series sprocket, which may cause the chain sprocket mechanism to fail to function properly!
Please choose joint links nominal No. 25.
2Number of links Allowable Maximum Tension
1Type
Specified Type Fixed Type (kN)

240 links
4~9998
C-CHE25 (2-link increments) (circumference length φ 0.64 6
1,524mm)

E Chains with specified number of links are not available for sale for the time being. Sprockets / Chains
Please order after selecting part number and parameters according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type) - 2Number of links
C-CHE25 - 240
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI Chains Sprockets /
Type C-CHE25 Keyword chain 25 Economy series

P.621

Attachments
Chains With
P.641
