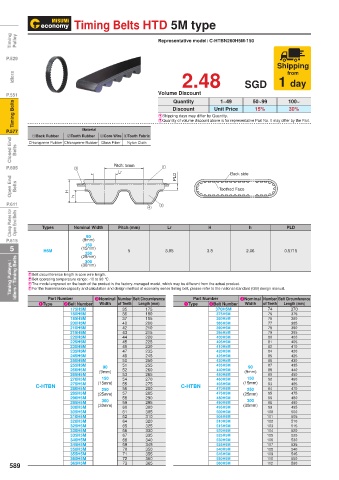

Page 594 - MISUMI SINGAPORE Economy Series

Timing Belts HTD 5M type

Timing Pulley Representative model: C-HTBN260H5M-150

P.529
Shipping
from
Idlers 2.48 SGD 1 day

P.551 Volume Discount 1~49 50~99 100~
Quantity
Timing Belts E Shipping days may differ by Quantity. 15% 30%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Back Rubber 2Tooth Rubber 3Core Wire 4Tooth Fabric
Closed End Belts Chloroprene Rubber Chloroprene Rubber Glass Fiber Nylon Cloth

P.605 3 Pitch: 5mm 1
Lr PLD Back side
Open End Belts H Toothed Face

P.611 h 2
4
Clamp Plates for Open End Belts Types Nominal Width Pitch (mm) Lr H h PLD

90
P.615 (9mm)
150
5 H5M (15mm) 5 3.05 3.8 2.06 0.5715
250
(25mm)
Timing Pulleys / Idlers / Timing Belts E Belt circumference length is core wire length.
300
(30mm)
EBelt operating temperature range: -10 to 90 °C.
EThe model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
E For the transmission capacity and calculation and design method of economy series timing belt, please refer to the national standard (GB) design manual.
Part Number
Part Number
Width
Length (mm)
Width
Length (mm)
of Teeth
of Teeth
1Type 2Belt Number 3Nominal Number Belt Circumference 1Type 2Belt Number 3Nominal Number Belt Circumference
175H5M 35 175 370H5M 74 370
180H5M 36 180 375H5M 75 375
185H5M 37 185 380H5M 76 380
200H5M 40 200 385H5M 77 385
210H5M 42 210 390H5M 78 390
215H5M 43 215 395H5M 79 395
220H5M 44 220 400H5M 80 400
225H5M 45 225 405H5M 81 405
230H5M 46 230 410H5M 82 410
235H5M 47 235 420H5M 84 420
245H5M 49 245 425H5M 85 425
250H5M 50 250 430H5M 86 430
255H5M 90 51 255 435H5M 90 87 435
260H5M (9mm) 52 260 440H5M (9mm) 88 440
265H5M 53 265 450H5M 90 450
270H5M 150 54 270 460H5M 150 92 460
C-HTBN 275H5M (15mm) 55 275 C-HTBN 465H5M (15mm) 93 465
280H5M
56
280
250
470H5M
470
94
250
285H5M (25mm) 57 285 475H5M (25mm) 95 475
290H5M 58 290 480H5M 96 480
295H5M 300 59 295 490H5M 300 98 490
300H5M (30mm) 60 300 495H5M (30mm) 99 495
305H5M 61 305 500H5M 100 500
310H5M 62 310 505H5M 101 505
320H5M 64 320 510H5M 102 510
325H5M 65 325 515H5M 103 515
330H5M 66 330 520H5M 104 520
335H5M 67 335 525H5M 105 525
340H5M 68 340 530H5M 106 530
345H5M 69 345 535H5M 107 535
350H5M 70 350 540H5M 108 540
355H5M 71 355 545H5M 109 545
360H5M 72 360 550H5M 110 550
589 365H5M 73 365 560H5M 112 560
