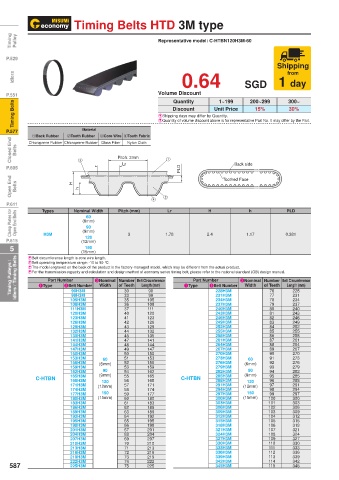

Page 592 - MISUMI SINGAPORE Economy Series

Timing Belts HTD 3M type

Timing Pulley Representative model: C-HTBN120H3M-60

P.529
Shipping
from
Idlers 0.64 SGD 1 day

P.551 Volume Discount 1~199 200~299 300~
Quantity
Timing Belts E Shipping days may differ by Quantity. 15% 30%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Back Rubber 2Tooth Rubber 3Core Wire 4Tooth Fabric
Closed End Belts Chloroprene Rubber Chloroprene Rubber Glass Fiber Pitch: 3mm
Nylon Cloth

P.605 3 Lr 1 PLD Back side
Open End Belts H h Toothed Face

4 2
P.611 Types Nominal Width Pitch (mm) Lr H h PLD
Clamp Plates for Open End Belts (6mm)
60
90
(9mm)
120
P.615 H3M (12mm) 3 1.78 2.4 1.17 0.381
5 E Belt circumference length is core wire length.
150
(15mm)
Timing Pulleys / Idlers / Timing Belts E Belt operating temperature range: -10 to 90 °C. of Teeth Length (mm) 1Type 2Belt Number 3Nominal Number Belt Circumference
E The model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
E For the transmission capacity and calculation and design method of economy series timing belt, please refer to the national standard (GB) design manual.
Part Number
3Nominal Number Belt Circumference
Part Number
Width
of Teeth
Length (mm)
Width
1Type
2Belt Number
90
90H3M
99H3M
231
77
231H3M
33
99
234
234H3M
78
35
105H3M
108
36
79
237H3M
237
108H3M 30 105 228H3M 76 228
111H3M 37 111 240H3M 80 240
120H3M 40 120 243H3M 81 243
123H3M 41 123 246H3M 82 246
126H3M 42 126 249H3M 83 249
129H3M 43 129 252H3M 84 252
132H3M 44 132 255H3M 85 255
135H3M 45 135 258H3M 86 258
141H3M 47 141 261H3M 87 261
144H3M 48 144 264H3M 88 264
147H3M 49 147 267H3M 89 267
150H3M 50 150 270H3M 90 270
153H3M 60 51 153 273H3M 60 91 273
156H3M (6mm) 52 156 276H3M (6mm) 92 276
159H3M 53 159 279H3M 93 279
162H3M 90 54 162 282H3M 90 94 282
C-HTBN 165H3M (9mm) 55 165 C-HTBN 285H3M (9mm) 95 285
288
288H3M
96
168
56
168H3M
120
120
171H3M (12mm) 57 171 291H3M (12mm) 97 291
174H3M 58 174 294H3M 98 294
177H3M 150 59 177 297H3M 150 99 297
180H3M (15mm) 60 180 300H3M (15mm) 100 300
183H3M 61 183 303H3M 101 303
186H3M 62 186 306H3M 102 306
189H3M 63 189 309H3M 103 309
192H3M 64 192 312H3M 104 312
195H3M 65 195 315H3M 105 315
198H3M 66 198 318H3M 106 318
201H3M 67 201 321H3M 107 321
204H3M 68 204 324H3M 108 324
207H3M 69 207 327H3M 109 327
210H3M 70 210 330H3M 110 330
213H3M 71 213 333H3M 111 333
216H3M 72 216 336H3M 112 336
219H3M 73 219 339H3M 113 339
587 222H3M 74 222 342H3M 114 342
345
345H3M
115
225H3M
75
225
