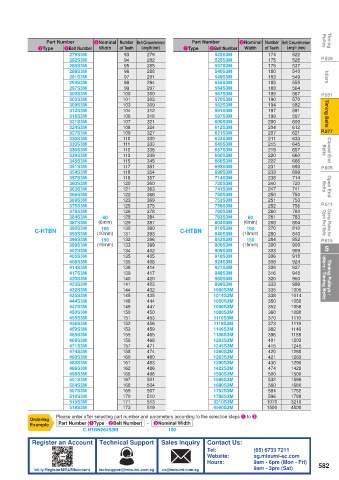

Page 587 - MISUMI SINGAPORE Economy Series

Part Number 3Nominal Number Belt Circumference Part Number 3Nominal Number Belt Circumference Pulley Timing
1Type 2Belt Number Width of Teeth Length (mm) 1Type 2Belt Number Width of Teeth Length (mm)
279S3M 93 279 522S3M 174 522
282S3M 94 282 525S3M 175 525 P.529
285S3M 95 285 537S3M 179 537
288S3M 96 288 540S3M 180 540
291S3M 97 291 549S3M 183 549 Idlers
294S3M 98 294 555S3M 185 555
297S3M 99 297 564S3M 188 564
300S3M 100 300 567S3M 189 567 P.551
303S3M 101 303 570S3M 190 570
309S3M 103 309 582S3M 194 582
312S3M 104 312 591S3M 197 591
318S3M 106 318 597S3M 199 597 Timing Belts
321S3M 107 321 600S3M 200 600
324S3M 108 324 612S3M 204 612
327S3M 109 327 621S3M 207 621 P.577
330S3M 110 330 633S3M 211 633
333S3M 111 333 645S3M 215 645
336S3M 112 336 657S3M 219 657 Belts Closed End
339S3M 113 339 660S3M 220 660
345S3M 115 345 666S3M 222 666
351S3M 117 351 693S3M 231 693 P.605
354S3M 118 354 699S3M 233 699
357S3M 119 357 714S3M 238 714
360S3M 120 360 720S3M 240 720
363S3M 121 363 741S3M 247 741 Belts Open End
366S3M 122 366 750S3M 250 750
369S3M 123 369 753S3M 251 753
375S3M 125 375 756S3M 252 756 P.611
378S3M 126 378 780S3M 260 780
384S3M 60 128 384 783S3M 60 261 783
387S3M (6mm) 129 387 804S3M (6mm) 268 804 Open End Belts Clamp Plates for
C-HTBN 390S3M 100 130 390 C-HTBN 810S3M 100 270 810
393S3M (10mm) 131 393 840S3M (10mm) 280 840
396S3M 150 132 396 852S3M 150 284 852 P.615
399S3M (15mm) 133 399 900S3M (15mm) 300 900 5
402S3M 134 402 909S3M 303 909
405S3M 135 405 918S3M 306 918
408S3M 136 408 924S3M 308 924
414S3M 138 414 927S3M 309 927
417S3M 139 417 948S3M 316 948
420S3M 140 420 960S3M 320 960 Idlers / Timing Belts Timing Pulleys /
423S3M 141 423 999S3M 333 999
432S3M 144 432 1005S3M 335 1005
435S3M 145 435 1014S3M 338 1014
444S3M 148 444 1050S3M 350 1050
447S3M 149 447 1056S3M 352 1056
450S3M 150 450 1080S3M 360 1080
453S3M 151 453 1110S3M 370 1110
456S3M 152 456 1119S3M 373 1119
459S3M 153 459 1146S3M 382 1146
465S3M 155 465 1188S3M 396 1188
468S3M 156 468 1203S3M 401 1203
471S3M 157 471 1245S3M 415 1245
474S3M 158 474 1260S3M 420 1260
480S3M 160 480 1263S3M 421 1263
483S3M 161 483 1290S3M 430 1290
486S3M 162 486 1422S3M 474 1422
498S3M 166 498 1500S3M 500 1500
501S3M 167 501 1596S3M 532 1596
504S3M 168 504 1680S3M 560 1680
507S3M 169 507 1752S3M 584 1752
510S3M 170 510 1788S3M 596 1788
513S3M 171 513 3210S3M 1070 3210
519S3M 173 519 4500S3M 1500 4500
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Belt Number) - 3Nominal Width
C-HTBN264S3M - 100
