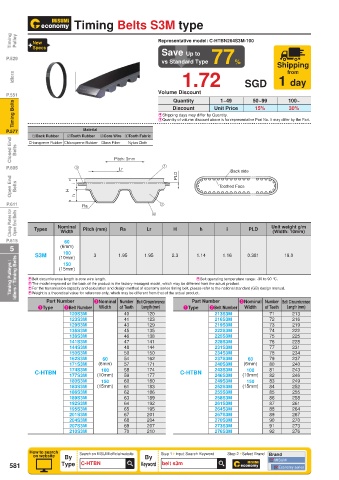

Page 586 - MISUMI SINGAPORE Economy Series

Timing Belts S3M type

Timing Pulley New Representative model: C-HTBN264S3M-100
Specs
Save Up to
P.529
vs Standard Type 77% Shipping
from
Idlers 1.72 SGD 1 day

Volume Discount
P.551 Quantity 1~49 50~99 100~
Timing Belts E Shipping days may differ by Quantity. 15% 30%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Back Rubber 2Tooth Rubber 3Core Wire 4Tooth Fabric
Closed End Belts Chloroprene Rubber Chloroprene Rubber Glass Fiber Nylon Cloth

P.605 3 Pitch: 3mm 1 PLD Back side
Lr
Open End Belts H i Toothed Face

P.611 h Ra 2
Clamp Plates for Open End Belts Types Nominal Pitch (mm) Ra Lr 4 H h i PLD Unit weight g/m

Width
(Width: 10mm)
P.615 60
5 (6mm)
100
S3M (10mm) 3 1.95 1.95 2.3 1.14 1.16 0.381 19.0
Timing Pulleys / Idlers / Timing Belts EBelt circumference length is core wire length. EBelt operating temperature range: -30 to 90 °C.
150
(15mm)
EThe model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
EFor the transmission capacity and calculation and design method of economy series timing belt, please refer to the national standard (GB) design manual.
EWeight is a theoretical value for reference only, which may be different from that of the actual product.
Part Number 3Nominal Number Belt Circumference Part Number 3Nominal Number Belt Circumference
1Type 2Belt Number Width of Teeth Length (mm) 1Type 2Belt Number Width of Teeth Length (mm)
120S3M 40 120 213S3M 71 213
123S3M 41 123 216S3M 72 216
129S3M 43 129 219S3M 73 219
135S3M 45 135 222S3M 74 222
138S3M 46 138 225S3M 75 225
141S3M 47 141 228S3M 76 228
144S3M 48 144 231S3M 77 231
150S3M 50 150 234S3M 78 234
162S3M 60 54 162 237S3M 60 79 237
171S3M (6mm) 57 171 240S3M (6mm) 80 240
C-HTBN 174S3M 100 58 174 C-HTBN 243S3M 100 81 243
177S3M (10mm) 59 177 246S3M (10mm) 82 246
180S3M 150 60 180 249S3M 150 83 249
183S3M (15mm) 61 183 252S3M (15mm) 84 252
186S3M 62 186 255S3M 85 255
189S3M 63 189 258S3M 86 258
192S3M 64 192 261S3M 87 261
195S3M 65 195 264S3M 88 264
201S3M 67 201 267S3M 89 267
204S3M 68 204 270S3M 90 270
207S3M 69 207 273S3M 91 273
210S3M 70 210 276S3M 92 276

How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
581 Type C-HTBN Keyword belt s3m Economy series
