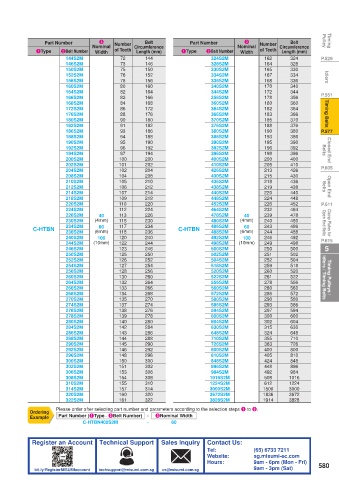

Page 585 - MISUMI SINGAPORE Economy Series

Part Number 3 Number Belt Part Number 3 Number Belt Pulley Timing
Nominal Circumference Nominal Circumference
1Type 2Belt Number Width of Teeth Length (mm) 1Type 2Belt Number Width of Teeth Length (mm)
144S2M 72 144 324S2M 162 324 P.529
146S2M 73 146 328S2M 164 328
150S2M 75 150 330S2M 165 330
152S2M 76 152 334S2M 167 334 Idlers
156S2M 78 156 336S2M 168 336
160S2M 80 160 340S2M 170 340
164S2M 82 164 344S2M 172 344
166S2M 83 166 356S2M 178 356 P.551
168S2M 84 168 360S2M 180 360
172S2M 86 172 364S2M 182 364
176S2M 88 176 366S2M 183 366 Timing Belts
180S2M 90 180 370S2M 185 370
182S2M 91 182 376S2M 188 376
186S2M 93 186 380S2M 190 380 P.577
188S2M 94 188 386S2M 193 386
190S2M 95 190 390S2M 195 390
192S2M 96 192 392S2M 196 392
194S2M 97 194 396S2M 198 396 Belts Closed End
200S2M 100 200 400S2M 200 400
202S2M 101 202 410S2M 205 410
204S2M 102 204 426S2M 213 426 P.605
208S2M 104 208 430S2M 215 430
210S2M 105 210 436S2M 218 436
212S2M 106 212 438S2M 219 438 Belts Open End
214S2M 107 214 440S2M 220 440
218S2M 109 218 448S2M 224 448
220S2M 110 220 452S2M 226 452 P.611
224S2M 112 224 464S2M 232 464
226S2M 40 113 226 478S2M 40 239 478
230S2M (4mm) 115 230 480S2M (4mm) 240 480 Open End Belts Clamp Plates for
60
60
C-HTBN 234S2M (6mm) 117 234 C-HTBN 486S2M (6mm) 243 486
118
244
488
488S2M
236
236S2M
240S2M 100 120 240 492S2M 100 246 492
244S2M (10mm) 122 244 498S2M (10mm) 249 498 P.615
246S2M 123 246 500S2M 250 500 5
250S2M 125 250 502S2M 251 502
252S2M 126 252 504S2M 252 504
254S2M 127 254 518S2M 259 518
256S2M 128 256 520S2M 260 520
260S2M 130 260 522S2M 261 522 Idlers / Timing Belts Timing Pulleys /
264S2M 132 264 556S2M 278 556
266S2M 133 266 560S2M 280 560
268S2M 134 268 572S2M 286 572
270S2M 135 270 580S2M 290 580
274S2M 137 274 586S2M 293 586
276S2M 138 276 594S2M 297 594
278S2M 139 278 600S2M 300 600
280S2M 140 280 604S2M 302 604
284S2M 142 284 630S2M 315 630
286S2M 143 286 648S2M 324 648
288S2M 144 288 710S2M 355 710
290S2M 145 290 726S2M 363 726
292S2M 146 292 800S2M 400 800
296S2M 148 296 810S2M 405 810
300S2M 150 300 848S2M 424 848
302S2M 151 302 896S2M 448 896
306S2M 153 306 984S2M 492 984
308S2M 154 308 1016S2M 508 1016
310S2M 155 310 1224S2M 612 1224
314S2M 157 314 3000S2M 1500 3000
320S2M 160 320 3672S2M 1836 3672
322S2M 161 322 3828S2M 1914 3828
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Belt Number) - 3Nominal Width
C-HTBN400S2M - 60
