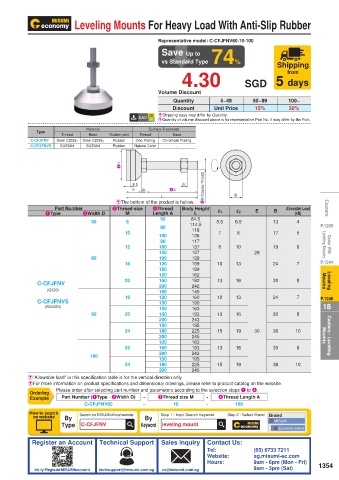

Page 1359 - MISUMI SINGAPORE Economy Series

Leveling Mounts For Heavy Load With Anti-Slip Rubber

Representative model: C-CFJFNV60-10-100
Save Up to
vs Standard Type 74% Shipping
4.30 SGD 5 days
from

Volume Discount
Quantity 4~49 50~99 100~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Surface Treatment
Type
Thread Base Rubber part Thread Base
C-CFJFNV Steel (Q235) Steel (Q235) Rubber Zinc Plating Chromate Plating
C-CFJFNVS SUS304 SUS304 Rubber Natural Color -

2D

8.5 R2
E R1 4A 3M (Coarse Thread)
L B
E The bottom of the product is hollow.
Part Number 3Thread size 4Thread Body Height Allowable Load Casters
1Type 2Width D M Length A L R 1 R 2 E B (kN)
50 8 50 84.5 5.5 6.5 13 4
80 114.5 P.1289
10 116 7 8 17 5
100 136
80 117
12 100 137 8 10 19 6 Leveling Mounts Caster With
120 157 29
60 100 139
16 120 159 10 13 24 7 P.1344
150 189
120 162
C-CFJFNV 20 150 192 13 16 30 8 Mounts Leveling
242
200
(Q235) 100 140
16 120 160 10 13 24 7 P.1346
C-CFJFNVS 150 190
(SUS304) 120 163 18
80 20 150 193 13 16 30 8
200 243
150 195
24 180 225 15 19 30 36 10
200 245 Mounts Casters / Leveling
120 163
20 150 193 13 16 30 9
100 200 243
150 195
24 180 225 15 19 36 10
200 245
E “Allowable load” in this specification table is for the vertical direction only
E For more information on product specifications and dimensional drawings, please refer to product catalog on the website.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type · 2Width D) - 3Thread size M - 4Thread Length A
C-CFJFNV60 - 10 - 100
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-CFJFNV Keyword leveling mount MISUMI
Economy series
