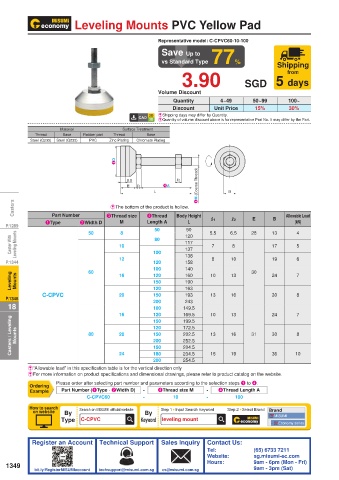

Page 1354 - MISUMI SINGAPORE Economy Series

Leveling Mounts PVC Yellow Pad

Representative model: C-CPVC60-10-100
Save Up to
vs Standard Type 77% Shipping
3.90 SGD 5 days
from

Volume Discount
Quantity 4~49 50~99 100~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Surface Treatment
Thread Base Rubber part Thread Base
Steel (Q235) Steel (Q235) PVC Zinc Plating Chromate Plating

2D

8.5 R2
E R1 4A 3M (Coarse Thread)
L B
Casters Part Number 3Thread size 4Thread Body Height Allowable Load
E The bottom of the product is hollow.

1Type 2Width D M Length A L R 1 R 2 E B (kN)
P.1289 50 8 50 90 5.5 6.5 28 13 4
Caster With Leveling Mounts 10 100 120 7 8 17 5
80
117
137
158
P.1344 12 120 138 8 10 19 6
100 140 30
60
Leveling Mounts 16 120 160 10 13 24 7
150
190
C-CPVC 20 120 163 13 16 30 8
150
193
P.1346 200 243
18 100 149.5
16 120 169.5 10 13 24 7
Casters / Leveling Mounts 80 20 120 172.5 13 16 31 30 8
199.5
150
150
202.5
200
252.5
204.5
150
24
180
254.5
200 234.5 15 19 36 10
E “Allowable load” in this specification table is for the vertical direction only
E For more information on product specifications and dimensional drawings, please refer to product catalog on the website.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type · 2Width D) - 3Thread size M - 4Thread Length A
C-CPVC60 - 10 - 100
