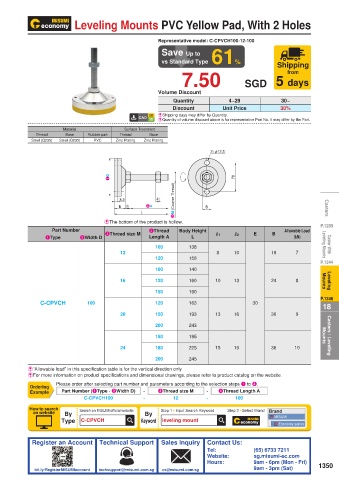

Page 1355 - MISUMI SINGAPORE Economy Series

Leveling Mounts PVC Yellow Pad, With 2 Holes

Representative model: C-CPVCH100-12-100
Save Up to
vs Standard Type 61% Shipping
7.50 SGD 5 days
from

Volume Discount
Quantity 4~29 30~
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Surface Treatment
Thread Base Rubber part Thread Base
Steel (Q235) Steel (Q235) PVC Zinc Plating Zinc Plating
2×φ12.5

2D 78
3M (Coarse Thread)
8.5 R2
E R1 4A B Casters
L
E The bottom of the product is hollow.
P.1289
Part Number 4Thread Body Height Allowable Load
1Type 2Width D 3Thread size M Length A L R 1 R 2 E B (kN)
100 138 Leveling Mounts Caster With
12 8 10 19 7
120 158
P.1344
100 140

16 120 160 10 13 24 8 Mounts Leveling
150 190
P.1346
C-CPVCH 100 120 163 30 18
20 150 193 13 16 30 9
200 243
150 195 Mounts Casters / Leveling
24 180 225 15 19 36 10

200 245
E “Allowable load” in this specification table is for the vertical direction only
E For more information on product specifications and dimensional drawings, please refer to product catalog on the website.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type · 2Width D) - 3Thread size M - 4Thread Length A
C-CPVCH100 - 12 - 100
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type C-CPVCH Keyword leveling mount
Economy series
