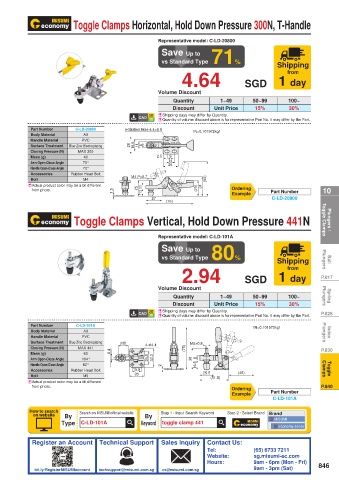

Page 851 - MISUMI SINGAPORE Economy Series

Toggle Clamps Horizontal, Hold Down Pressure 300N, T-Handle

Representative model: C-LD-20800
Save Up to
vs Standard Type 71% Shipping
4.64 SGD 1 day
from

Volume Discount
Quantity 1~49 50~99 100~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Part Number C-LD-20800 4-Slotted Hole 4.4×6.9 1N=0.101972kgf
Body Material A3
Handle Material PVC
Surface Treatment Blue Zinc Electroplating 28 19.5 11 8
Closing Pressure (N) MAX 300
Mass (g) 40 2.5 9
Arm Open-Close Angle 70° 14
24
Handle Open-Close Angle 70°
Accessories Rubber Head Bolt M4 P=0.7
Bolt M4 (55)
E Actual product color may be a bit different 31
from photo. 1.5 25 11.5 5.5 (25) Ordering Part Number 10
Example
27 C-LD-20800
(76)
Toggle Clamps Vertical, Hold Down Pressure 441N Toggle Clamps Plungers /

Representative model: C-LD-101A

Save Up to
vs Standard Type 80% Shipping Plungers Ball
2.94 SGD 1 day P.817
from

Volume Discount
Quantity 1~49 50~99 100~ Plungers Spring
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part. P.826
Part Number C-LD-101A 1N=0.101972kgf
Body Material A3 Plungers Index
Handle Material PVC
Surface Treatment Blue Zinc Electroplating (18) 4- φ 4.4 M5×0.8
Closing Pressure (N) MAX 441 (75) P.830
Mass (g) 60 6.4
Arm Open-Close Angle 104° 23.8 33.3 38 8
Handle Open-Close Angle 62° 2 16.5
Accessories Rubber Head Bolt 15.9 25.5 (45) Clamps Toggle
Bolt M5 26 (51.5)
E Actual product color may be a bit different
from photo. P.840
Ordering
Example Part Number
C-LD-101A
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-LD-101A Keyword toggle clamp 441 MISUMI
Economy series
