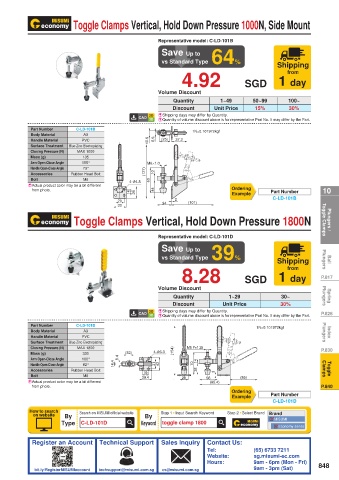

Page 853 - MISUMI SINGAPORE Economy Series

Toggle Clamps Vertical, Hold Down Pressure 1000N, Side Mount

Representative model: C-LD-101B
Save Up to
vs Standard Type 64% Shipping
4.92 SGD 1 day
from

Volume Discount
Quantity 1~49 50~99 100~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Part Number C-LD-101B 1N=0.101972kgf
Body Material A3
Handle Material PVC 10.5 6.5 (25) 37.2
Surface Treatment Blue Zinc Electroplating
Closing Pressure (N) MAX 1000
Mass (g) 135
Arm Open-Close Angle 105° M6×1.0
Handle Open-Close Angle 73°
Accessories Rubber Head Bolt (127) 10
Bolt M6 4- φ 4.8 60
E Actual product color may be a bit different
from photo. 44 Ordering 10
14 29 Example Part Number
20 34 2 (101) C-LD-101B
30
Toggle Clamps Vertical, Hold Down Pressure 1800N Toggle Clamps Plungers /

Representative model: C-LD-101D

Save Up to
vs Standard Type 39% Shipping Plungers Ball
8.28 SGD 1 day P.817
from

Volume Discount
Quantity 1~29 30~ Plungers Spring
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part. P.826
Part Number C-LD-101D 1N=0.101972kgf
Body Material A3 Plungers Index
Handle Material PVC
Surface Treatment Blue Zinc Electroplating
Closing Pressure (N) MAX 1800 M8 P=1.25 P.830
Mass (g) 330 (32) 4- φ 6.3 (154)
Arm Open-Close Angle 100° 8.4 14
Handle Open-Close Angle 62° 14.4 31 42 70
Accessories Rubber Head Bolt 19 38 3 Clamps Toggle
Bolt M8 39.4 26 56 (85)
E Actual product color may be a bit different (95.4)
from photo. P.840
Ordering
Example Part Number
C-LD-101D
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-LD-101D Keyword toggle clamp 1800 MISUMI
Economy series
