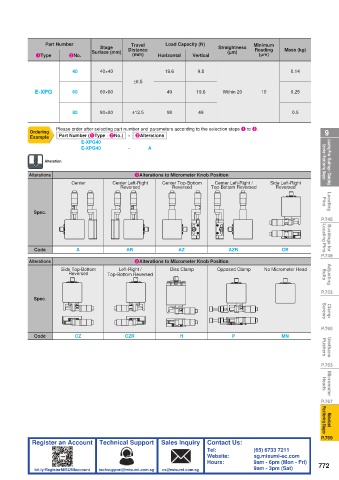

Page 777 - MISUMI SINGAPORE Economy Series

Part Number Stage Travel Load Capacity (N) Straightness Minimum
Surface (mm) Distance (µm) Reading Mass (kg)
1Type 2No. (mm) Horizontal Vertical (μm)

40 40×40 19.6 9.8 0.14
±6.5
E-XPG 60 60×60 49 19.6 Within 20 10 0.25

80 80×80 ±12.5 98 49 0.5

Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering 9
Example Part Number (1Type · 2No.) - 3Alterations
E-XPG40
E-XPG40 - A
Alteration Screws / Positioning Stages Locating Pins / Bushings / Clamping
Alterations 3Alterations to Micrometer Knob Position
Center Center Left-Right Center Top-Bottom Center Left-Right / Side Left-Right
Reversed Reversed Top-Bottom Reversed Reversed

Spec. Pins Locating
P.745

Code A AR AZ AZR CR Locating Pins Bushings for
P.749
Alterations 3Alterations to Micrometer Knob Position
Side Top-Bottom Left-Right / Disc Clamp Opposed Clamp No Micrometer Head
Reversed Top-Bottom Reversed Bolts Adjusting

P.753
Spec. Screws Clamp

P.760
Code CZ CZR H P MN Pushers Urethane

P.763

Heads
Micrometer
P.767

Motorized
Positioning Stages
P.769
