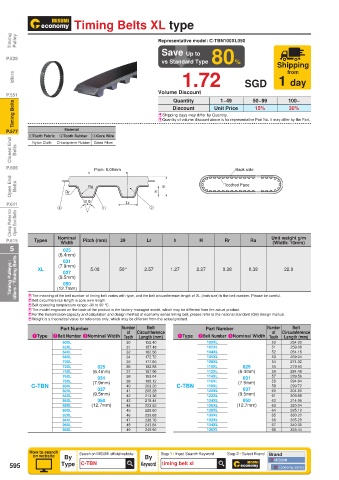

Page 600 - MISUMI SINGAPORE Economy Series

Timing Belts XL type

Timing Pulley Representative model: C-TBN100XL050

Save Up to
P.529
vs Standard Type 80% Shipping
from
Idlers 1.72 SGD 1 day

Volume Discount
P.551 Quantity 1~49 50~99 100~
Timing Belts E Shipping days may differ by Quantity. 15% 30%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Tooth Fabric 2Tooth Rubber 3Core Wire
Closed End Belts Nylon Cloth Chloroprene Rubber Glass Fiber

P.605 Pitch: 5.08mm Back side
Open End Belts Rr Ra h H Toothed Face

θ θ
P.611 3 1 Lr 2
Clamp Plates for Open End Belts

P.615 Types Nominal Pitch (mm) 2θ Lr h H Rr Ra Unit weight g/m
Width
(Width: 10mm)
5 025
(6.4mm)
Timing Pulleys / Idlers / Timing Belts XL (12.7mm) 5.08 50° 2.57 1.27 2.27 0.38 0.38 22.0
031
(7.9mm)
037
(9.5mm)
050
EThe meaning of the belt number of timing belt varies with type, and the belt circumference length of XL (inch size) is the belt number. Please be careful.
EBelt circumference length is core wire length.
EBelt operating temperature range: -30 to 90 °C.
EThe model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
EFor the transmission capacity and calculation and design method of economy series timing belt, please refer to the national standard (GB) design manual.
EWeight is a theoretical value for reference only, which may be different from the actual product.
Belt
Belt
Part Number Number Circumference Part Number Number Circumference
of
of
1Type 2Belt Number 3Nominal Width Teeth Length (mm) 1Type 2Belt Number 3Nominal Width Teeth Length (mm)
60XL 30 152.40 100XL 50 254.00
62XL 31 157.48 102XL 51 259.08
64XL 32 162.56 104XL 52 264.16
68XL 34 172.72 106XL 53 269.24
70XL 35 177.80 108XL 54 274.32
72XL 025 36 182.88 110XL 025 55 279.40
74XL (6.4mm) 37 187.96 112XL (6.4mm) 56 284.48
76XL 031 38 193.04 114XL 031 57 289.56
78XL (7.9mm) 39 198.12 116XL (7.9mm) 58 294.64
C-TBN 80XL 40 203.20 C-TBN 118XL 59 299.72
82XL 037 41 208.28 120XL 037 60 304.80
84XL (9.5mm) 42 213.36 122XL (9.5mm) 61 309.88
86XL 050 43 218.44 124XL 050 62 314.96
88XL (12.7mm) 44 223.52 126XL (12.7mm) 63 320.04
90XL 45 228.60 128XL 64 325.12
92XL 46 233.68 130XL 65 330.20
94XL 47 238.76 132XL 66 335.28
96XL 48 243.84 134XL 67 340.36
98XL 49 248.92 136XL 68 345.44
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
595 Type C-TBN Keyword timing belt xl Economy series
