Timing Pulley Driving Conveying Mechanism Reference price

Application Industries: Automotive part Electronic & Electrical Home appliance

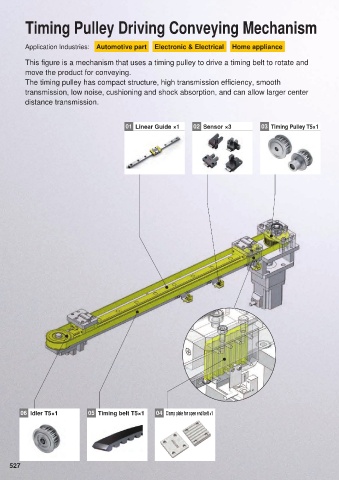

This figure is a mechanism that uses a timing pulley to drive a timing belt to rotate and
move the product for conveying.
The timing pulley has compact structure, high transmission efficiency, smooth 103.10 SGD/set
transmission, low noise, cushioning and shock absorption, and can allow larger center
distance transmission.

01 Linear Guide ×1 02 Sensor ×3 03 Timing Pulley T5×1 01 Linear Guide ×1 P.313 02 Sensor ×3 P.904

Nominal model 15 Shape T Shape
Width 590mm Output PNP Type (Normally Open)
E-GMLG15-590 C-MSX672N

57.04 4.95

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 57.04 57.04 1 4.95 4.95
10 45.64 456.40 50 4.21 210.50

03 Timing Pulley T5×1 P.549 04 Clamp plate for open end belt ×1 P.616

Pulley Shape A Belt, Type T5
Belt Nominal Width 100 (10mm) Belt Width 10mm
Number of Teeth 22 C-TBCR-T5100
Round Hole (Shaft Hole Dia.
8mm) + Threaded Hole
C-TTPA22T5100-A-P8
7.24 3.48

SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 7.24 7.24 1 3.48 3.48
30 5.07 152.10 50 2.96 148.00

05 Timing belt T5×1 P.601 06 Idler T5×1 P.571

Belt Nominal Width 100 (10mm) Both Sides Bearing
Belt Circumference Length 1100mm Belt Nominal Width 100 (10mm)
C-TTBN1100T5-100 Number of Teeth 20
Shaft Dia. 8mm
C-AHTFW20-T5100-8
5.57 14.92
06 Idler T5×1 05 Timing belt T5×1 04 Clamp plate for open end belt ×1
SGD/pcs SGD/pcs
Quantity Unit price Total price Quantity Unit price Total price
1 5.57 5.57 1 14.92 14.92
30 3.90 117.00 10 10.45 104.50
