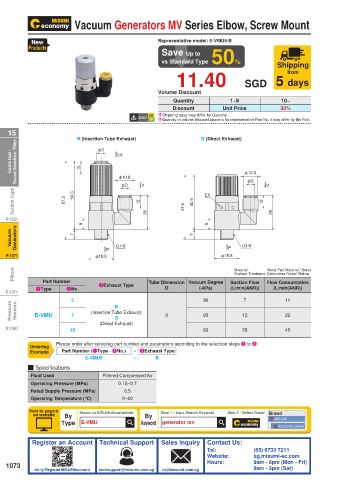

Page 1078 - MISUMI SINGAPORE Economy Series

Vacuum Generators MV Series Elbow, Screw Mount

New Representative model: E-VMU5-B
Products
Save Up to
vs Standard Type 50% Shipping
11.40 SGD 5 days
from

Volume Discount
Quantity 1~9 10~
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
15
B (Insertion Tube Exhaust) D (Direct Exhaust)
Suction Cups / Vacuum Generators / Filters 15 φD EX φ10.8

φ10.8
φD V φD V
Suction Cups 57.3 50.3 12 47.6 40.6 EX 12

P.1031 26 26
9 9
Vacuum Generators 7 G1/8 7 G1/8

P
P.1071 φ18.5 P φ18.5

Filters Part Number Material: Metal Part Material / Brass
Surface Treatment: Electroless Nickel Plating
(-kPa)
(L/min(ANR))
D
(L/min(ANR))
1Type 2No. 3Exhaust Type Tube Dimension Vacuum Degree Suction Flow Flow Consumption
P.1071 5 90 7 11
Pressure Sensors E-VMU 7 (Insertion Tube Exhaust) 6 93 12 22
B
D
(Direct Exhaust)
P.1081 10 93 28 45
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2No.) - 3Exhaust Type
E-VMU5 - B
Q Specifications
Fluid Used Filtered Compressed Air
Operating Pressure (MPa) 0.15~0.7
Rated Supply Pressure (MPa) 0.5
Operating Temperature (°C) 0~60
