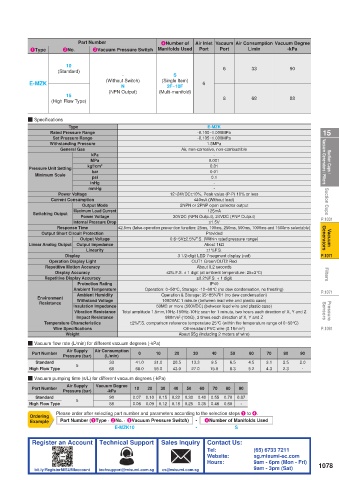

Page 1083 - MISUMI SINGAPORE Economy Series

Part Number 4Number of Air Inlet Vacuum Air Consumption Vacuum Degree
1Type 2No. 3Vacuum Pressure Switch Manifolds Used Port Port L/min -kPa

10
(Standard) 6 33 90
- S
E-MZK (Without Switch) (Single Item) 6
N
2F~10F
(NPN Output) (Multi-manifold)
15
(High Flow Type) 8 68 88
Q Specifications
Type E-MZK
Rated Pressure Range -0.100~1.000MPa 15
Set Pressure Range -0.105~1.000MPa
Withstanding Pressure 1.5MPa
General Gas Air, non-corrosive, non-combustible
kPa -
MPa 0.001 Vacuum Generators / Filters Suction Cups /
kgf/cm 2 0.01
Pressure Unit Setting bar 0.01
Minimum Scale psi 0.1
inHg -
mmHg -
Power Voltage 12~24VDC±10%, Peak value (P-P) 10% or less
Current Consumption ≤40mA (Without load) Suction Cups
Output Mode 2NPN or 2PNP open collector output
Maximum Load Current 125mA
Switching Output
Power Voltage 30VDC (NPN Output), 24VDC (PNP Output)
Internal Pressure Drop ≤1.5V P.1031
Response Time ≤2.5ms (false-operation prevention function: 25ms, 100ms, 250ms, 500ms, 1000ms and 1500ms selectable)
Output Short Circuit Protection Provided
Output Voltage 0.6~5V±2.5%F.S. (Within rated pressure range) Generators Vacuum
Linear Analog Output Output Impedance About 1kΩ
Linearity ±1%F.S.
Display 3 1/2-digit LED 7-segment display (red) P.1071
Operation Display Light OUT1 Green/OUT2 Red
Repetitive Motion Accuracy About 0.2 seconds
Display Accuracy ±2% F.S. ± 1 digit (at ambient temperature: 25+3°C)
Repetitive Display Accuracy ±0.2%F.S. + 1 digit Filters
Protection Rating IP40
Ambient Temperature Operation: 0~50°C, Storage: -10~60°C (no dew condensation, no freezing) P.1071
Ambient Humidity Operation & Storage: 35~85%RH (no dew condensation)
Environment Withstand Voltage 1000VAC 1 minute (between lead wire and plastic case)
Resistance
Insulation Impedance 50MΩ or more (500VDC) (between lead wire and plastic case)
Vibration Resistance Total amplitude 1.5mm,10Hz-150Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Z Sensors Pressure
Impact Resistance 980m/s (100G), 3 times each direction of X, Y and Z
2
Temperature Characteristics ±2%F.S. comparison reference temperature 25°C (within the temperature range of 0~50°C)
Wire Specifications Oil-resistant PVC wire (0.15mm ) 2 P.1081
Weight About 55g (Including 2 meters of wire)
Q Vacuum flow rate (L/min) for different vacuum degrees (-kPa)
Air Supply Air Consumption
Part Number 0 10 20 30 40 50 60 70 80 90
Pressure (bar) (L/min)
Standard 33 41.0 31.0 20.5 13.3 9.5 6.5 4.5 3.1 2.5 2.0
High Flow Type 5 68 68.0 55.0 43.0 27.0 15.0 8.3 5.2 4.3 2.3 -
Q Vacuum pumping time (s/L) for different vacuum degrees (-kPa)
Air Supply Vacuum Degree
Part Number Pressure (bar) -kPa 10 20 30 40 50 60 70 80 90
Standard 90 0.07 0.10 0.15 0.22 0.30 0.40 0.55 0.70 0.87
High Flow Type 5 88 0.06 0.09 0.12 0.18 0.25 0.35 0.46 0.60 -
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type · 2No. · 3Vacuum Pressure Switch) - 4Number of Manifolds Used
E-MZK10 - S
