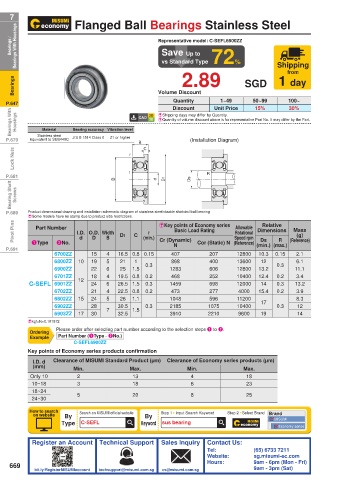

Page 674 - MISUMI SINGAPORE Economy Series

7 Flanged Ball Bearings Stainless Steel 7
Bearings With Housings Save Up to 72% Shipping Bearings With Housings Bearings /
Bearings / Representative model: C-SEFL6900ZZ

vs Standard Type
2.89
from
Bearings Volume Discount SGD 1 day Bearings

Quantity 1~49 50~99 100~
P.647 Discount Unit Price 15% 30% P.647
Bearings With Housings Material Bearing accuracy Vibration level E Shipping days may differ by Quantity. Housings Bearings With
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

Stainless steel
P.679 Equivalent to SUS440C JIS B 1514 Class 0 Z1 or higher B C (Installation Diagram) P.679
Lock Nuts r Lock Nuts

r R
P.681 D d D1 Ds P.681
Bearing Shaft Screws Screws Bearing Shaft

P.689 Product dimensional drawing and installation schematic diagram of stainless steel double shielded ball bearing P.689
ESome models have no stamp due to product size restrictions.
Pivot Pins Part Number I.D. O.D. Width D1 C (min.) EKey points of Economy series Speed rpm Dimensions (Reference) Pivot Pins
Relative
Allowable
Basic Load Rating
Mass
r
Rotational
(g)
d
D
B
R
Ds
Cr (Dynamic)
P.691 1Type 2No. N Cor (Static) N (Reference) (min.) (max.) P.691
6700ZZ 15 4 16.5 0.8 0.15 407 207 12800 10.3 0.15 2.1
6800ZZ 10 19 5 21 1 868 400 13600 12 6.1
6900ZZ 22 6 25 1.5 0.3 1283 606 12800 13.2 0.3 11.1
6701ZZ 18 4 19.5 0.8 0.2 468 252 10400 12.4 0.2 3.4
C-SEFL 6901ZZ 12 24 6 26.5 1.5 0.3 1459 698 12000 14 0.3 13.2
6702ZZ 21 4 22.5 0.8 0.2 473 277 4000 15.4 0.2 3.9
6802ZZ 15 24 5 26 1.1 1048 596 11200 8.3
6902ZZ 28 30.5 0.3 2185 1075 10400 17 0.3 12
6903ZZ 17 30 7 32.5 1.5 3910 2210 9600 19 14
E kgf=N×0.101972
Please order after selecting part number according to the selection steps 1 to 2.
Ordering
Example Part Number (1Type · 2No.)
C-SEFL6900ZZ
Key points of Economy series products confirmation
I.D. d Clearance of MISUMI Standard Product (μm) Clearance of Economy series products (μm)
(mm) Min. Max. Min. Max.
Only 10 2 13 4 18
10~18 3 18 6 23
18~24
24~30 5 20 8 25
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-SEFL Keyword sus bearing MISUMI
Economy series
