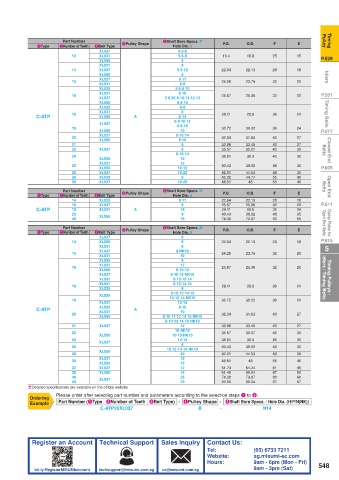

Page 553 - MISUMI SINGAPORE Economy Series

Part Number 5Shaft Bore Specs. P Pulley Timing
1Type 2Number of Teeth 3Belt Type 4Pulley Shape Hole Dia. d P.D. O.D. F E
XL037 4·5·8
12 XL031 5·6·8 19.4 18.9 25 15
XL050 5 P.529
XL031 8
14 XL037 5·8·10 22.64 22.13 28 18
XL050 8
XL037 8·11 Idlers
15 XL031 6·8 24.26 23.75 32 20
XL025 5·6·8·10
XL031 8·10
16 25.87 25.36 32 20 P.551
XL037 5·6.35·8·10·11·12·13
XL050 5·8·10
XL025 6·8
8
C-ATP 18 XL031 A 8·14 29.11 28.6 36 24 Timing Belts
XL050
XL037 6·8·10·12
19 XL050 6·8·10 30.72 30.22 36 24 P.577
10
XL037 8·10·14
20 XL050 8·10 32.34 31.83 40 27
21 8 33.96 33.45 40 27
22 XL037 8 35.57 35.07 45 30 Belts Closed End
24 8·10·14 38.81 38.3 45 30
XL050 10
25 XL037 15 40.43 39.92 48 35
XL050 10·12 P.605
26 XL037 10·22 42.01 41.53 48 35
28 XL025 8 45.28 44.77 55 40
30 XL037 10·20 48.51 48 55 40
Part Number 4Pulley Shape 5Shaft Bore Specs. H P.D. O.D. F E Belts Open End
1Type 2Number of Teeth 3Belt Type Hole Dia. d
14 XL025 8·11 22.64 22.13 28 18
16 XL037 8 25.87 25.36 32 20 P.611
C-ATP 18 XL031 A 14 29.11 28.6 36 24
25 XL050 8 40.43 39.92 48 35
46 16 74.38 73.87 80 60
Part Number 4Pulley Shape 5Shaft Bore Specs. N P.D. O.D. F E Open End Belts Clamp Plates for
1Type 2Number of Teeth 3Belt Type Hole Dia. d
XL037 8
14 XL050 8 22.64 22.13 28 18 P.615
XL031 8 5
15 XL037 8·NK10 24.26 23.75 32 20
XL031 10
XL025 8
XL031 12
16 XL050 8·10·12 25.87 25.36 32 20
XL037 8·10·12·NK10
XL031 8·10·12·14 Idlers / Timing Belts Timing Pulleys /
18 XL037 8·10·14·15 29.11 28.6 36 24
XL025 8
XL050 8·10·12·14·15
19 10·12·15·NK10 30.72 30.22 36 24
XL037 12·15
C-ATP XL025 A 8·10
10
XL031
20 XL050 8·10·11·12·14·15·NK10 32.34 31.83 40 27
8·10·12·14·16·NK10
21 XL037 12 33.96 33.45 40 27
10·NK10
22 35.57 35.07 45 30
XL050 10·15·NK10
24 XL037 12·14 38.81 38.3 45 30
25 8 40.43 39.92 48 35
XL050 10·12·14·15·NK10
26 20 42.01 41.53 48 35
30 XL031 12 48.51 48 55 40
XL050 15
32 XL037 12 51.74 51.24 61 45
38 XL050 15 61.45 60.94 67 50
46 25 74.38 73.87 80 60
50 XL037 10 80.85 80.34 87 67
EDetailed specifications are available on the official website
Please order after selecting part number and parameters according to the selection steps 1 to 5.
Ordering
Example Part Number (1Type · 2Number of Teeth · 3Belt Type) - 4Pulley Shape - 5Shaft Bore Specs. / Hole Dia. (H/P/N(NK))
C-ATP20XL037 - B - N14
