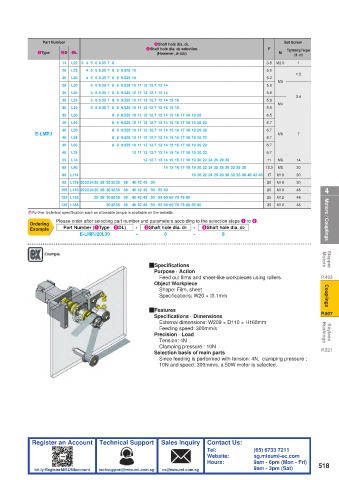

Page 523 - MISUMI SINGAPORE Economy Series

Part Number 3Shaft hole dia. d1, Set Screw
4Shaft hole dia. d2 selection F Tightening Torque
1Type 2D 2L (However, d1≤d2) M (N · m)
14 L22 3 4 5 6 6.35 7 8 3.8 M2.5 1
20 L25 4 5 6 6.35 7 8 9 9.525 10 5.2
1.5
20 L30 4 5 6 6.35 7 8 9 9.525 10 5.2
M3
25 L30 5 6 6.35 7 8 9 9.525 10 11 12 12.7 13 14 5.8
25 L35 5 6 6.35 7 8 9 9.525 10 11 12 12.7 13 14 5.8
3.4
30 L35 5 6 6.35 7 8 9 9.525 10 11 12 12.7 13 14 15 16 5.9
M4
30 L40 5 6 6.35 7 8 9 9.525 10 11 12 12.7 13 14 15 16 5.9
35 L50 8 9 9.525 10 11 12 12.7 13 14 15 16 17 18 19 20 6.5
40 L40 8 9 9.525 10 11 12 12.7 13 14 15 16 17 18 19 20 22 6.7
40 L50 8 9 9.525 10 11 12 12.7 13 14 15 16 17 18 19 20 22 6.7
E-LMPJ M5 7
40 L55 8 9 9.525 10 11 12 12.7 13 14 15 16 17 18 19 20 22 6.7
40 L66 8 9 9.525 10 11 12 12.7 13 14 15 16 17 18 19 20 22 6.7
40 L78 10 11 12 12.7 13 14 15 16 17 18 19 20 22 6.7
55 L78 12 12.7 13 14 15 16 17 18 19 20 22 24 25 28 30 11 M6 14
65 L90 14 15 16 17 18 19 20 22 24 25 28 30 32 35 38 12.3 M8 30
80 L114 19 20 22 24 25 28 30 32 35 38 40 42 45 17 M10 30
95 L126 20222425 28 303235 38 40 42 45 50 20 M10 30
105 L140 20222425 28 303235 38 40 42 45 50 55 60 20 M10 48 4
120 L135 25 28 303235 38 40 42 45 50 55 60 65 70 75 80 25 M12 48
135 L185 303235 38 40 42 45 50 55 60 65 70 75 80 85 90 30 M12 48
E Further technical specification such as allowable torque is available on the website.
Please order after selecting part number and parameters according to the selection steps 1 to 4. Motors / Couplings
Ordering
Example Part Number (1Type · 2DL) - 3Shaft hole dia. d1 - 4Shaft hole dia. d2
E-LMPJ20L30 - 6 - 8

Example Motors
QSpecifications Stepper
Purpose · Action
Feed out films and sheet-like workpieces using rollers. P.493
Object Workpiece
Shape: Film, sheet
Specifications: W20 × t0.1mm Couplings

QFeatures
Specifications · Dimensions P.507
External dimensions: W209 × D110 × H168mm
Feeding speed: 300mm/s
Precision · Load Bushings Keyless
Tension: 4N
Clamping pressure : 10N
Selection basis of main parts P.521
Since feeding is performed with tension: 4N, clamping pressure :
10N and speed: 300mm/s, a 50W motor is selected.
