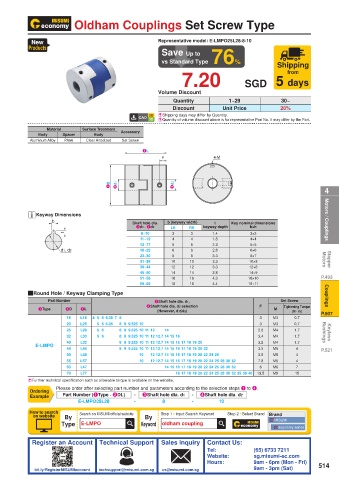

Page 519 - MISUMI SINGAPORE Economy Series

Oldham Couplings Set Screw Type

New Representative model: E-LMPO25L28-8-10
Products
Save Up to
vs Standard Type 76% Shipping
7.20 SGD 5 days
from

Volume Discount
Quantity 1~29 30~
Discount Unit Price 20%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Surface Treatment
Body Spacer Body Accessory
Aluminum Alloy PA66 Clear Anodized Set Screw
2L
F 4-M

2D 3d1 4d2
4

Keyway Dimensions
b Shaft hole dia. b (keyway width) t Key nominal dimensions Motors / Couplings
3d1 · 4d2 LK RK keyway depth b×h
8~10 3 3 1.4 3×3
t
11~12 4 4 1.8 4×4
13~17 5 5 2.3 5×5
d1, d2 18~22 6 6 2.8 6×6
23~30 8 8 3.3 8×7
31~38 10 10 3.3 10×8 Motors Stepper
39~44 12 12 3.3 12×8
45~50 14 14 3.8 14×9
51~58 16 16 4.3 16×10 P.493
59~65 18 18 4.4 18×11
QRound Hole / Keyway Clamping Type Couplings
Part Number 3Shaft hole dia. d1, Set Screw
4Shaft hole dia. d2 selection F Tightening Torque
1Type 2D 2L (However, d1≤d2) M (N · m)
16 L18 4 5 6 6.35 7 8 3 M3 0.7 P.507
20 L25 5 6 6.35 8 9 9.525 10 3 M3 0.7
25 L28 5 6 8 9 9.525 10 11 12 14 2.8 M4 1.7 Bushings
32 L33 5 6 8 9 9.525 10 11 12 12.7 14 15 16 3.4 M4 1.7 Keyless
40 L32 8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20 3.2 M4 1.7
E-LMPO
44 L46 8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20 22 3.5 M5 4 P.521
50 L38 10 12 12.7 14 15 16 17 18 19 20 22 24 25 3.8 M5 4
55 L57 10 12 12.7 14 15 16 17 18 19 20 22 24 25 28 30 32 7.8 M5 4
63 L47 14 15 16 17 18 19 20 22 24 25 28 30 32 6 M6 7
70 L77 16 17 18 19 20 22 24 25 28 30 32 35 38 40 13.5 M8 15
E Further technical specification such as allowable torque is available on the website.
Please order after selecting part number and parameters according to the selection steps 1 to 4.
Ordering
Example Part Number (1Type · 2DL) - 3Shaft hole dia. d1 - 4Shaft hole dia. d2
E-LMPO25L28 - 8 - 10
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type E-LMPO Keyword oldham coupling
Economy series
