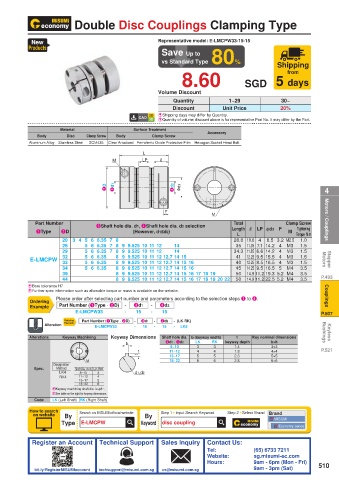

Page 515 - MISUMI SINGAPORE Economy Series

Double Disc Couplings Clamping Type

New Representative model: E-LMCPW33-15-15
Products
Save Up to
vs Standard Type 80% Shipping
8.60 SGD 5 days
from

Volume Discount
Quantity 1~29 30~
Discount Unit Price 20%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Surface Treatment Accessory
Body Disc Clamp Screw Body Clamp Screw
Aluminum Alloy Stainless Steel SCM435 Clear Anodized Ferroferric Oxide Protective Film Hexagon Socket Head Bolt
L
M LP L

2D 3d1 4d2 φ d3 4

F M
Part Number 3Shaft hole dia. d1, 4Shaft hole dia. d2 selection Total Clamp Screw Motors / Couplings
1Type 2D (However, d1≤d2) Length L LP φd3 F M Tightening
L Torque N·m
20 3 4 5 6 6.35 7 8 28.8 10.6 4 8.5 3.2 M2.5 1.0
26 5 6 6.35 7 8 9 9.525 10 11 12 14 35 11.35 7.1 14.2 4 M3 1.5
29 5 6 6.35 7 8 9 9.525 10 11 12 14 34.3 11.85 6.6 14.2 4 M3 1.5
E-LMCPW 32 5 6 6.35 8 9 9.525 10 11 12 12.7 14 15 41 12.25 9.5 15.5 4 M3 1.5 Motors Stepper
8 9 9.525 10 11 12 12.7 14 15 16
5 6 6.35
M3
1.5
33
40
12.25 8.5 16.5 4
34 5 6 6.35 8 9 9.525 10 11 12 12.7 14 15 16 45 14.25 9.5 16.5 5 M4 3.5
39 8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 50 14.9 11.2 19.3 5.2 M4 3.5
44 8 9 9.525 10 11 12 12.7 14 15 16 17 18 19 20 22 50 14.9 11.2 22.5 5.2 M4 3.5 P.493
EBore tolerance H7
EFurther spec information such as allowable torque or mass is available on the website.
Please order after selecting part number and parameters according to the selection steps 1 to 4. Couplings
Ordering
Example Part Number (1Type · 2D) - 3d1 - 4d2
E-LMCPW33 - 15 - 15 P.507
Ordering Part Number (1Type · 2D) - 3d1 - 4d2 - (LK·RK)
Alteration Example E-LMCPW33 - 15 - 15 - LK5
Alterations Keyway Machining Keyway Dimensions Shaft hole dia. b (keyway width) t Key nominal dimensions Bushings Keyless
b 3d1 · 4d2 LK RK keyway depth b×h
8~10 3 3 1.4 3×3
11~12 4 4 1.8 4×4 P.521
13~17 5 5 2.3 5×5
t
M 18~22 6 6 2.8 6×6
Designation
Spec. Method Shaft Dia. d1·d2 LK·RK
LK4 8~10 3 d1,d2
RK4 11~12 4
13~17 5
18~22 6
EKeyway machining shaft dia. is φ8~.
ESee table on the right for keyway dimensions.
Code LK (Left Shaft) RK (Right Shaft)
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type E-LMCPW Keyword disc coupling MISUMI
Economy series
