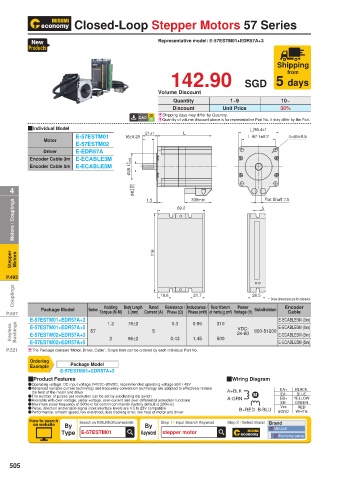

Page 510 - MISUMI SINGAPORE Economy Series

Closed-Loop Stepper Motors 57 Series

New Representative model: E-57ESTM01+EDR57A+3
Products

Shipping
142.90 SGD 5 days
from

Volume Discount
Quantity 1~9 10~
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
QIndividual Model #56.4±1
E-57ESTM01 16±0.25 21±1 L #47.1±0.2 4×φ5±0.5
Motor
E-57ESTM02
Driver E-EDR57A
Encoder Cable 3m E-ECABLE3M
Encoder Cable 5m E-ECABLE5M 0 -0.045
φ 38.1

4 -0.003 -0.012
φ 8 1.5 300min Flat Shaft 7.5
Motors / Couplings 69.2 5

Stepper Motors 116

P.493
Couplings 19.6 21.7 26.5 * Driver dimensions are for reference

Package Model Series Holding Body Length Rated Resistance / Inductance / Rotor Moment Power Subdivision Encoder
P.507 Torque (N·M) L (mm) Current (A) Phase (Ω) Phase (mH) of Inertia (g.cm²) Voltage (V) Cable
E-57ESTM01+EDR57A+3 1.2 76±2 0.3 0.95 310 E-ECABLE3M (3m)
Keyless Bushings E-57ESTM01+EDR57A+5 57 2 96±2 5 0.43 1.45 500 VDC: 800-51200 E-ECABLE5M (5m)
24-80
E-57ESTM02+EDR57A+3
E-ECABLE3M (3m)
E-57ESTM02+EDR57A+5
P.521 EThe Package contains “Motor, Driver, Cable”. Single Item can be ordered by each individual Part No. E-ECABLE5M (5m)
Ordering
Example Package Model
E-57ESTM01+EDR57A+3
QProduct Features QWiring Diagram
IOperating voltage: DC input voltage 24VDC~80VDC, recommended operating voltage 36V / 48V
I Advanced variable current technology and frequency conversion technology are adopted to effectively reduce EA+ BLACK
the heat of the motor and driver A+BLK
BLUE
EA-
IThe number of pulses per revolution can be set by subdividing dip switch M EB+ YELLOW
IAvailable with over-voltage, under-voltage, over-current and over-differential protection functions A-GRN
IMaximum pulse frequency of 500kHz for control commands (factory default is 200kHz) EB- GREEN
IPulse, direction and enable signal input interface levels are 4.5 to 28V compatible B+RED B-BLU Vcc RED
IPerformance: smooth speed, low overshoot, less tracking error, low heat of motor and driver EGND WHITE
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type E-57ESTM01 Keyword stepper motor
Economy series
