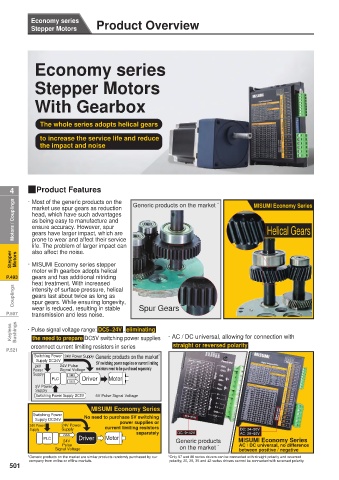

Economy series Product Overview
Stepper Motors

Economy series

Stepper Motors

With Gearbox

The whole series adopts helical gears
to increase the service life and reduce
the impact and noise

4 QProduct Features Generic products on the market * MISUMI Economy Series

Most of the generic products on the
·
Motors / Couplings market use spur gears as reduction Helical Gears
head, which have such advantages
as being easy to manufacture and
ensure accuracy. However, spur
gears have larger impact, which are
prone to wear and affect their service
life. The problem of larger impact can
also affect the noise.
Stepper Motors · MISUMI Economy series stepper

motor with gearbox adopts helical
P.493 gears and has additional nitriding
heat treatment. With increased
Couplings gears last about twice as long as
intensity of surface pressure, helical
spur gears. While ensuring longevity,

P.507 wear is reduced, resulting in stable Spur Gears
transmission and less noise.
Keyless Bushings · Pulse signal voltage range: DC5~24V , eliminating · AC / DC universal, allowing for connection with
the need to prepare DC5V switching power supplies
orconnect current limiting resistors in series straight or reversed polarity
P.521
Switching Power 24V Power Supply Generic products on the market *
Supply DC24V 5V switching power supplies or current limiting
24V 24V Pulse
Power Signal Voltage resistors need to be purchased separately
Supply
PLC Driver Motor
5V Power
Supply
Switching Power Supply DC5V 5V Pulse Signal Voltage
MISUMI Economy Series
Switching Power No need to purchase 5V switching
Supply DC24V power supplies or
24V Power 24V Power current limiting resistors
Supply Supply separately DC: 9~42V DC: 24~80V
AC: 20~60V
PLC 24V Driver Motor Generic products MISUMI Economy Series
Pulse * AC / DC universal, no difference
Signal Voltage on the market between positive / negative
*Generic products on the market are similar products randomly purchased by our *Only 57 and 86 series drivers can be connected with straight polarity and reversed
company from online or offline markets. polarity; 20, 28, 35 and 42 series drivers cannot be connected with reversed polarity.
