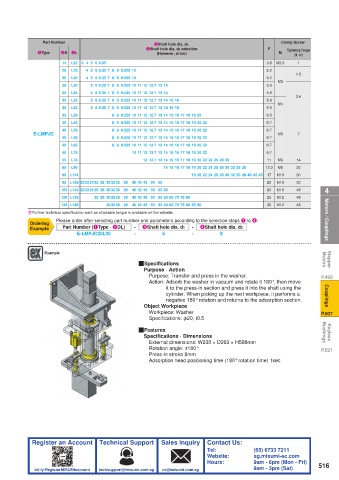

Page 521 - MISUMI SINGAPORE Economy Series

Part Number 3Shaft hole dia. d1, Clamp Screw
4Shaft hole dia. d2 selection F Tightening Torque
1Type 2D 2L (However, d1≤d2) M (N · m)
14 L22 3 4 5 6 6.35 3.8 M2.5 1
20 L25 4 5 6 6.35 7 8 9 9.525 10 5.2
1.5
20 L30 4 5 6 6.35 7 8 9 9.525 10 5.2
M3
25 L30 5 6 6.35 7 8 9 9.525 10 11 12 12.7 13 14 5.8
25 L35 5 6 6.35 7 8 9 9.525 10 11 12 12.7 13 14 5.8
3.4
30 L35 5 6 6.35 7 8 9 9.525 10 11 12 12.7 13 14 15 16 5.9
M4
30 L40 5 6 6.35 7 8 9 9.525 10 11 12 12.7 13 14 15 16 5.9
35 L50 8 9 9.525 10 11 12 12.7 13 14 15 16 17 18 19 20 6.5
40 L40 8 9 9.525 10 11 12 12.7 13 14 15 16 17 18 19 20 22 6.7
40 L50 8 9 9.525 10 11 12 12.7 13 14 15 16 17 18 19 20 22 6.7
E-LMPJC M5 7
40 L55 8 9 9.525 10 11 12 12.7 13 14 15 16 17 18 19 20 22 6.7
40 L66 8 9 9.525 10 11 12 12.7 13 14 15 16 17 18 19 20 22 6.7
40 L78 10 11 12 12.7 13 14 15 16 17 18 19 20 22 6.7
55 L78 12 12.7 13 14 15 16 17 18 19 20 22 24 25 28 30 11 M6 14
65 L90 14 15 16 17 18 19 20 22 24 25 28 30 32 35 38 12.3 M8 30
80 L114 19 20 22 24 25 28 30 32 35 38 40 42 45 17 M10 30
95 L126 20222425 28 303235 38 40 42 45 50 55 20 M10 30
105 L140 20222425 28 303235 38 40 42 45 50 55 60 20 M10 48 4
120 L135 25 28 303235 38 40 42 45 50 55 60 65 70 75 80 25 M12 48
135 L185 303235 38 40 42 45 50 55 60 65 70 75 80 85 90 30 M12 48
E Further technical specification such as allowable torque is available on the website.
Please order after selecting part number and parameters according to the selection steps 1 to 4. Motors / Couplings
Ordering
Example Part Number (1Type · 2DL) - 3Shaft hole dia. d1 - 4Shaft hole dia. d2
E-LMPJC20L30 - 6 - 8

Example
QSpecifications Motors Stepper
Purpose · Action
Purpose: Transfer and press in the washer. P.493
Action: Adsorb the washer in vacuum and rotate it 180°, then move
it to the press-in section and press it into the shaft using the
cylinder. When picking up the next workpiece, it performs a Couplings
negative 180° rotation and returns to the adsorption section.
Object Workpiece
Workpiece: Washer P.507
Specifications: φ20, t0.5
QFeatures
Specifications · Dimensions Bushings Keyless
External dimensions: W230 × D263 × H598mm
Rotation angle: ±180° P.521
Press-in stroke 8mm
Adsorption head positioning time (180° rotation time) 1sec
