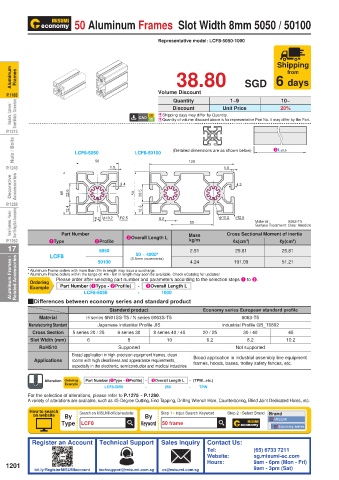

Page 1206 - MISUMI SINGAPORE Economy Series

50 Aluminum Frames Slot Width 8mm 5050 / 50100

Representative model: LCF8-5050-1000

Shipping
Aluminum Frames 38.80 SGD 6 days Frames Aluminum
from

P.1183 Volume Discount 1~9 10~ P.1183
Quantity
Brackets / Corners / Sheet Metals / Connectors E Shipping days may differ by Quantity. 20% Sheet Metals / Connectors Brackets / Corners /
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
P.1215 P.1215
Nuts / Bolts LCF8-5050 LCF8-50100 (Detailed dimensions are as shown below) 3L±0.5 Nuts / Bolts

P.1243 50 1.9 100 1.9 P.1243
Decorative Accessories 50 22.6 3.4 50 20.5 4.2 Accessories Decorative

P.1258 12.4 12.3 P.1258
Panel Fasteners / Panels / Door Sliding Slot Accessories 8.2 φ10.2 R2.5 8.2 50 φ10.2 R2.5 Material: 6063-T5 Door Sliding Slot Accessories Panel Fasteners / Panels /
Surface Treatment: Clear Anodize

kg/m
P.1262 1Type Part Number 2Profile 3Overall Length L Mass Cross Sectional Moment of inertia P.1262
ℓx(cm )
ℓy(cm )
4
4
17 LCF8 50100 (0.5mm increments) 2.51 191.09 25.81 17
5050
25.81
50 ~ 4000*
Aluminum Frames / Related Accessories * Aluminum Frame orders with more than 2m in length may incur a surcharge. 1000 Related Accessories Aluminum Frames /
51.21
4.24
* Aluminum Frame orders within the range of 4m - 6m in length may soon be available. Check eCatalog for updates!
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
3Overall Length L
-
Part Number (1Type - 2Profile)
Example
-
LCF8-5050
QDifferences between economy series and standard product
Standard product Economy series European standard profile
Material H series 6N01SS-T5 / N series 6063S-T5 6063-T5
Manufacturing Standard Japanese Industrial Profile JIS Industrial Profile GB_T6892
Cross Section 5 series 20 / 25 6 series 30 8 series 40 / 45 20 / 25 30 / 40 45
Slot Width (mm) 6 8 10 6.2 8.2 10.2
RoHS10 Supported Not supported
Broad application in high-precision equipment frames, clean
Applications rooms with high cleanliness and appearance requirements, Broad application in industrial assembly line equipment
frames, hoods, bases, trolley safety fences, etc.
especially in the electronic, semiconductor and medical industries
Alteration Ordering Part Number (1Type - 2Profile) - 3Overall Length L - (TPW...etc.)
Example
LCF8-5050 - 250 - TPW
For the selection of alterations, please refer to P.1275 ~ P.1280.
A variety of alterations are available, such as 45-Degree Cutting, End Tapping, Drilling Wrench Hole, Counterboring, Blind Joint Dedicated Holes, etc.
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type LCF8 Keyword 50 frame Economy series
