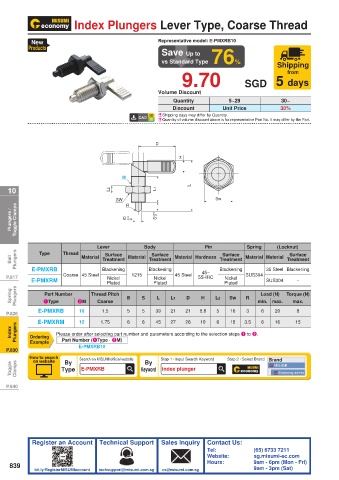

Page 844 - MISUMI SINGAPORE Economy Series

Index Plungers Lever Type, Coarse Thread

New Representative model: E-PMXRB10
Products
Save Up to
vs Standard Type 76% Shipping
9.70 SGD 5 days
from

Volume Discount
Quantity 5~29 30~
Discount Unit Price 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

D

H

M
L
10 L2 L1
SW R Sw
Plungers / Toggle Clamps B -0.04 +0.5 S 0
0

Lever Body Pin Spring (Locknut)
Surface
Surface
Surface
Surface
Ball Plungers Type Thread Material Treatment Material Treatment Material Hardness Treatment Material Material Treatment
45~
P.817 E-PMXRB Coarse 45 Steel Blackening 1215 Blackening 45 Steel 55HRC Blackening SUS304 35 Steel Blackening
Nickel
Nickel
Nickel
E-PMXRM Plated Plated Plated SUS304 -
Spring Plungers 1Type 2M Thread Pitch B S L L1 D H L2 Sw R min. max. Torque (N)
Load (N)
Part Number
max.
Coarse
E-PMXRB 10 1.5 5 5 39 21 21 8.8 5 16 3 6 20 8
P.826
E-PMXRM 12 1.75 6 6 45 27 26 10 6 18 3.5 6 16 15
Index Plungers Ordering Please order after selecting part number and parameters according to the selection steps 1 to 2.
Part Number (1Type · 2M)
P.830 Example E-PMXRB10
How to search By Search on MISUMI official website By Step 1 Input Search Keyword Step 2 Select Brand Brand
on website
Toggle Clamps Type E-PMXRB Keyword index plunger MISUMI
Economy series
P.840
