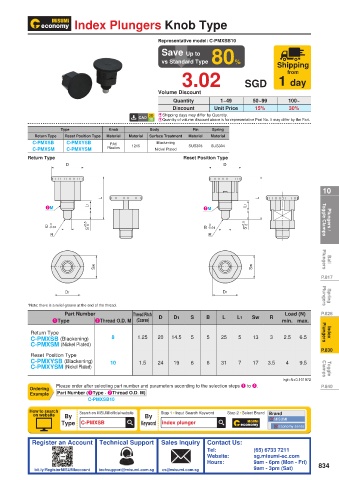

Page 839 - MISUMI SINGAPORE Economy Series

Index Plungers Knob Type

Representative model: C-PMXSB10
Save Up to
vs Standard Type 80% Shipping
3.02 SGD 1 day
from

Volume Discount
Quantity 1~49 50~99 100~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Type Knob Body Pin Spring
Return Type Reset Position Type Material Material Surface Treatment Material Material
C-PMXSB C-PMXYSB PA6 1215 Blackening SUS303 SUS304
C-PMXSM C-PMXYSM Plastics Nickel Plated
Return Type Reset Position Type
D D

10
L L
2M L1 2M L1

0 0 Toggle Clamps Plungers /
B -0.04 S +0.5 0 B -0.04 S +0.5 0
R R

Sw Sw Plungers Ball
P.817

D1 D1 Plungers Spring
*Note: there is a relief groove at the end of the thread.
Part Number Thread Pitch Load (N) P.826
1Type 2Thread O.D. M (Coarse) D D1 S B L L1 Sw R min. max.
Return Type Plungers Index
C-PMXSB (Blackening) 8 1.25 20 14.5 5 5 25 5 13 3 2.5 6.5
C-PMXSM (Nickel Plated)
P.830
Reset Position Type
C-PMXYSB (Blackening) 10 1.5 24 19 6 6 31 7 17 3.5 4 9.5
C-PMXYSM (Nickel Plated) Clamps Toggle

kgf=N×0.101972
Please order after selecting part number and parameters according to the selection steps 1 to 2. P.840
Ordering
Example Part Number (1Type · 2Thread O.D. M)
C-PMXSB10
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-PMXSB Keyword index plunger MISUMI
Economy series
