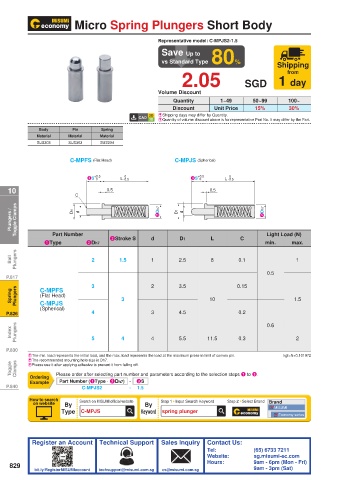

Micro Spring Plungers Short Body

Representative model: C-MPJS2-1.5
Save Up to
vs Standard Type 80% Shipping
2.05 SGD 1 day
from

Volume Discount
Quantity 1~49 50~99 100~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Body Pin Spring
Material Material Material
SUS303 SUS303 SUS304

C-MPFS (Flat Head) C-MPJS (Spherical)

0
0
3S +0.5 L -0.5 3S +0.5 L -0.5
0
0
10 0.5 0.5
C
Plungers / Toggle Clamps D1 d 2Dh7 D1 d 2Dh7

Part Number
Light Load (N)
1Type 2Dh7 3Stroke S d D1 L C min. max.
Ball Plungers 2 1.5 1 2.5 8 0.1 1

0.5
P.817
3 2 3.5 0.15
C-MPFS
Spring Plungers (Flat Head) 3 10 1.5
C-MPJS
(Spherical)
P.826 4 3 4.5 0.2

Index Plungers 5 4 4 5.5 11.5 0.3 0.6 2

P.830
EThe min. load represents the initial load, and the max. load represents the load at the maximum press-in limit of convex pin. kgf=N×0.101972
EThe recommended mounting hole size is Dh7.
Toggle Clamps EPlease use it after applying adhesive to prevent it from falling off.
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Dh7) - 3S
P.840 C-MPJS2 - 1.5
