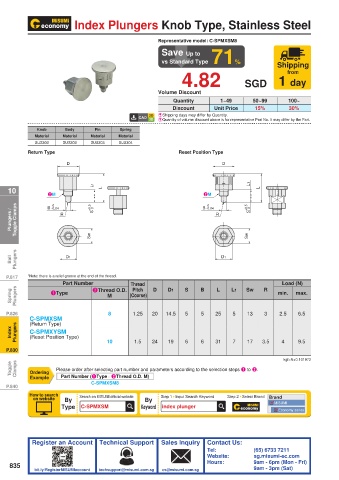

Page 840 - MISUMI SINGAPORE Economy Series

Index Plungers Knob Type, Stainless Steel

Representative model: C-SPMXSM8
Save Up to
vs Standard Type 71% Shipping
4.82 SGD 1 day
from

Volume Discount
Quantity 1~49 50~99 100~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Knob Body Pin Spring
Material Material Material Material
SUS303 SUS303 SUS303 SUS304
Return Type Reset Position Type
D D D D

L1 L1 L1 L1
10 L L L L
2M 2M 2M 2M
0
0
0
0
Plungers / Toggle Clamps B -0.04 R B -0.04 R Sw S +0.5 0 Sw S +0.5 0 B -0.04 R B -0.04 R Sw S +0.5 0 Sw S +0.5 0

Ball Plungers D1 D1 D1 D1

P.817 *Note: there is a relief groove at the end of the thread.
Part Number Thread Load (N)
Pitch
Spring Plungers 1Type 2Thread O.D. (Coarse) D D1 S B L L1 Sw R min. max.
M

P.826 8 1.25 20 14.5 5 5 25 5 13 3 2.5 6.5
C-SPMXSM
(Return Type)
Index Plungers C-SPMXYSM
(Reset Position Type)

P.830 10 1.5 24 19 6 6 31 7 17 3.5 4 9.5
kgf=N×0.101972
Toggle Clamps Ordering Please order after selecting part number and parameters according to the selection steps 1 to 2.
Part Number (1Type · 2Thread O.D. M)
Example
C-SPMXSM8
P.840
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By MISUMI
Type C-SPMXSM Keyword index plunger Economy series
