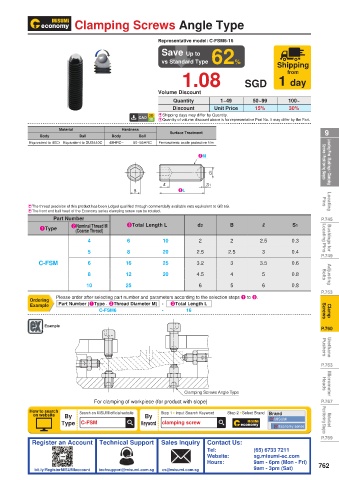

Page 767 - MISUMI SINGAPORE Economy Series

Clamping Screws Angle Type

Representative model: C-FSM6-16
Save Up to
vs Standard Type 62% Shipping
1.08 SGD 1 day
from

Volume Discount
Quantity 1~49 50~99 100~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity.
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material Hardness
Body Ball Body Ball Surface Treatment 9
Equivalent to 40Cr Equivalent to SUS440C 48HRC~ 50~55HRC Ferrosoferric oxide protective film

2M Screws / Positioning Stages Locating Pins / Bushings / Clamping

d2
L S1
B 3L

E The thread precision of this product has been judged qualified through commercially available nuts equivalent to GB 6G. Pins Locating
EThe front end ball head of the Economy series clamping screw can be rotated.
Part Number P.745
1Type 2Nominal Thread M 3Total Length L d2 B L S1
(Coarse Thread)
4 6 10 2 2 2.5 0.3 Locating Pins Bushings for
5 8 20 2.5 2.5 3 0.4
P.749
C-FSM 6 16 25 3.2 3 3.5 0.6
8 12 20 4.5 4 5 0.8 Bolts Adjusting
10 25 6 5 6 0.8
P.753
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Thread Diameter M) - 3Total Length L
C-FSM6 - 16 Screws Clamp
Example
P.760

Pushers
Urethane
P.763

Clamping Screws Angle Type Heads Micrometer
For clamping of workpiece (for product with slope) P.767
How to search Search on MISUMI official website Step 1 Input Search Keyword Step 2 Select Brand Brand
on website By By
Type C-FSM Keyword clamping screw MISUMI Positioning Stages Motorized
Economy series
P.769
